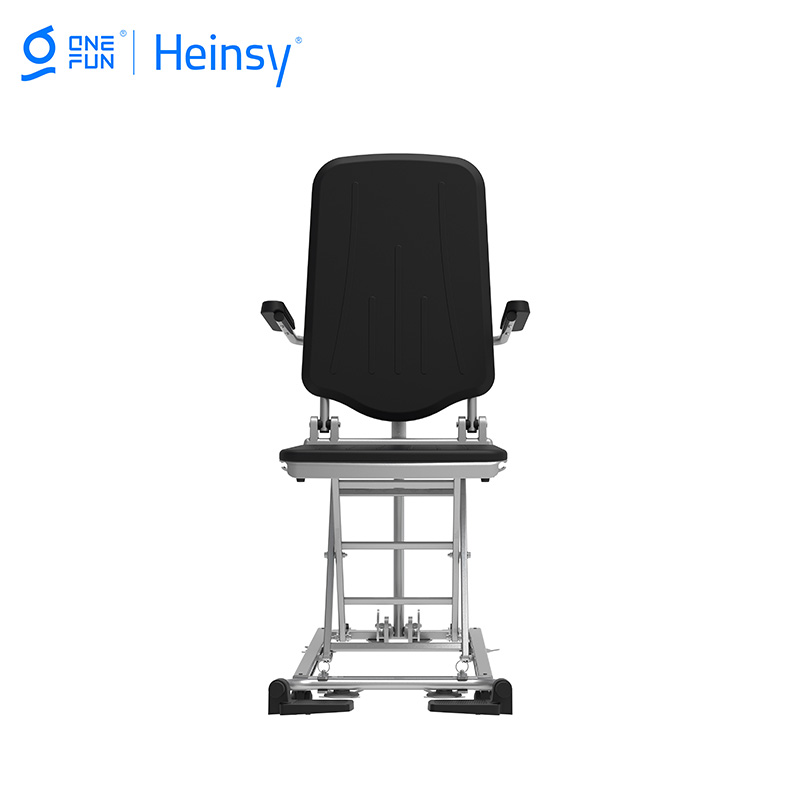

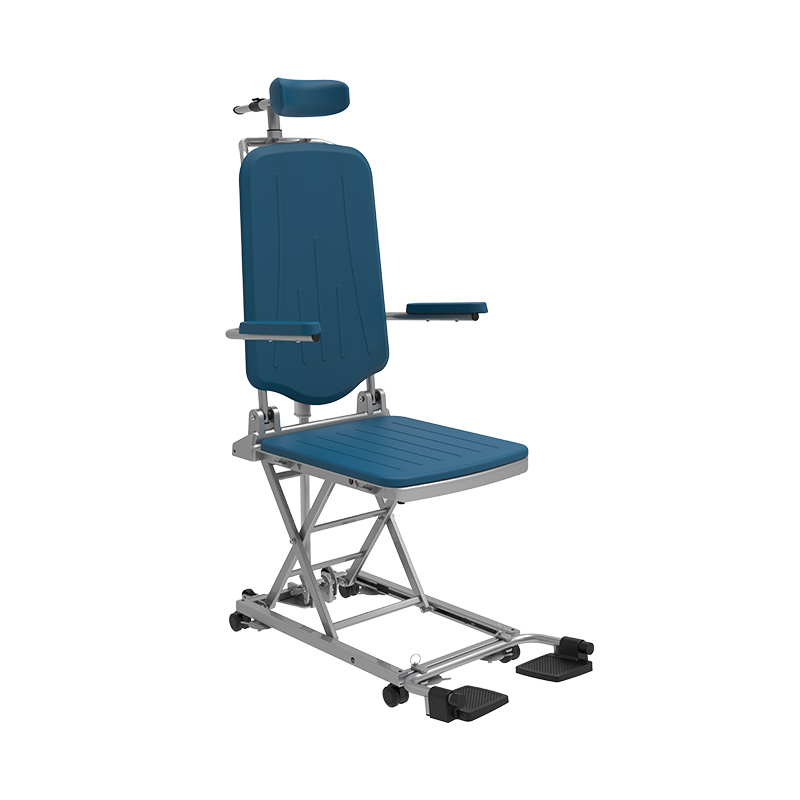

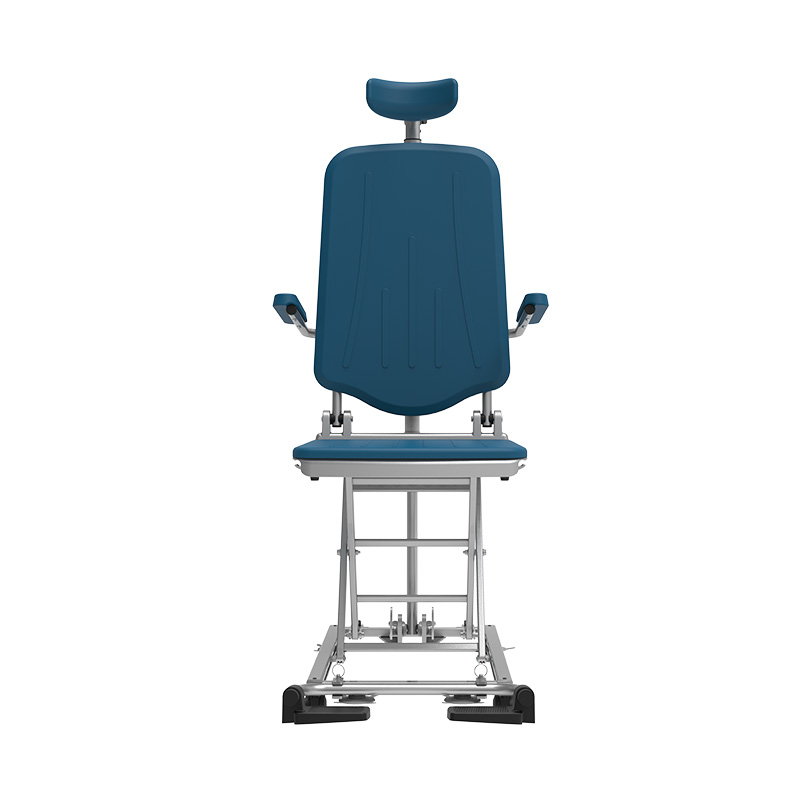

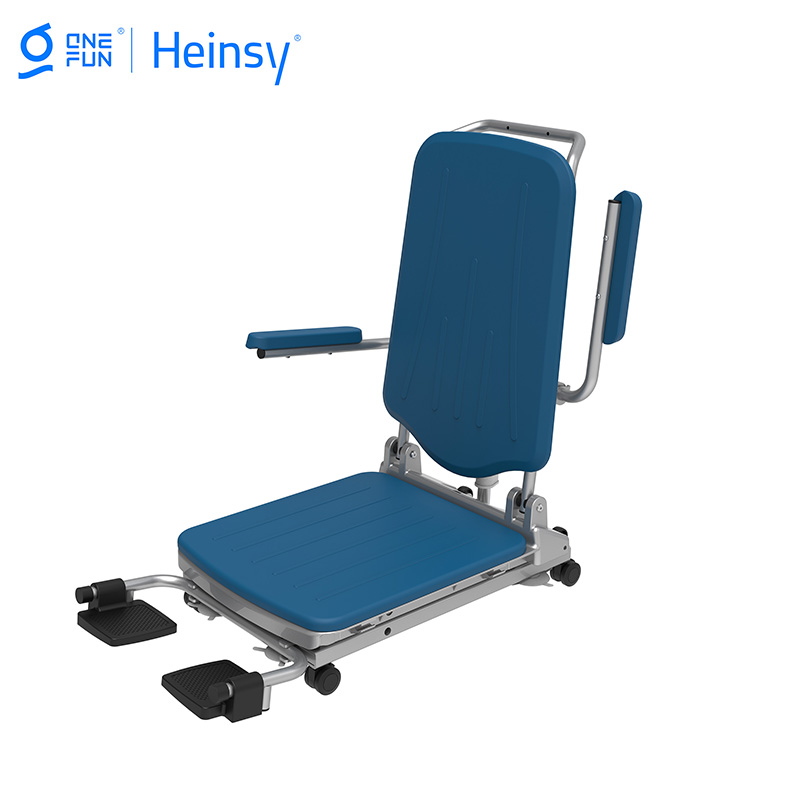

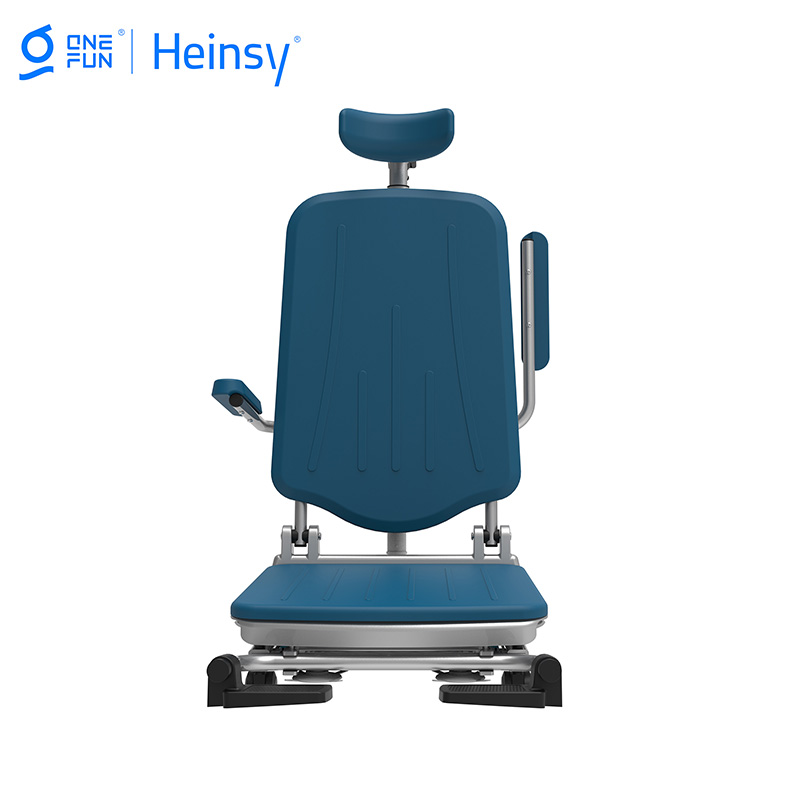

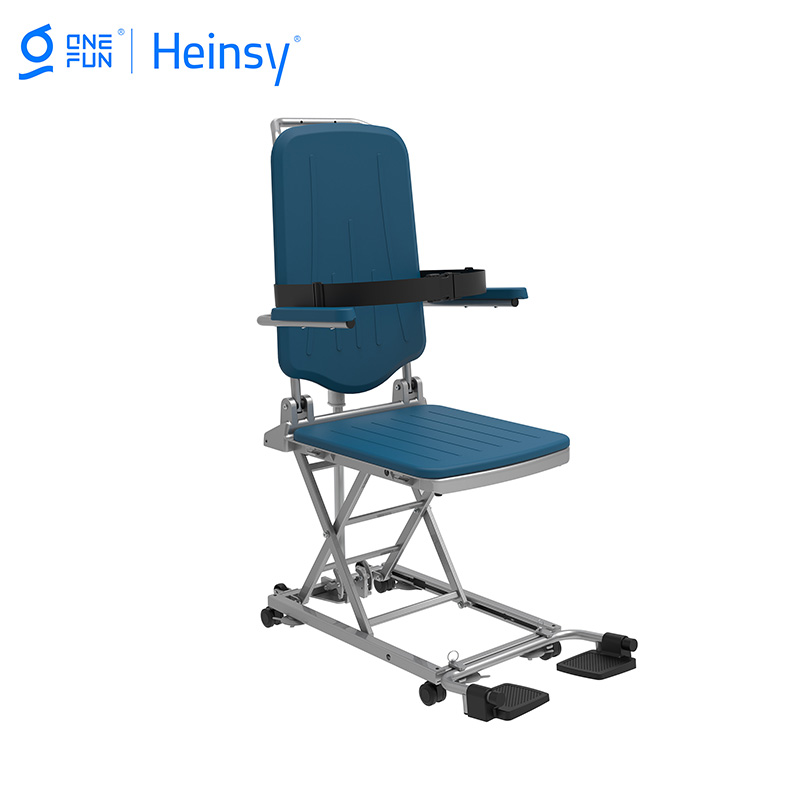

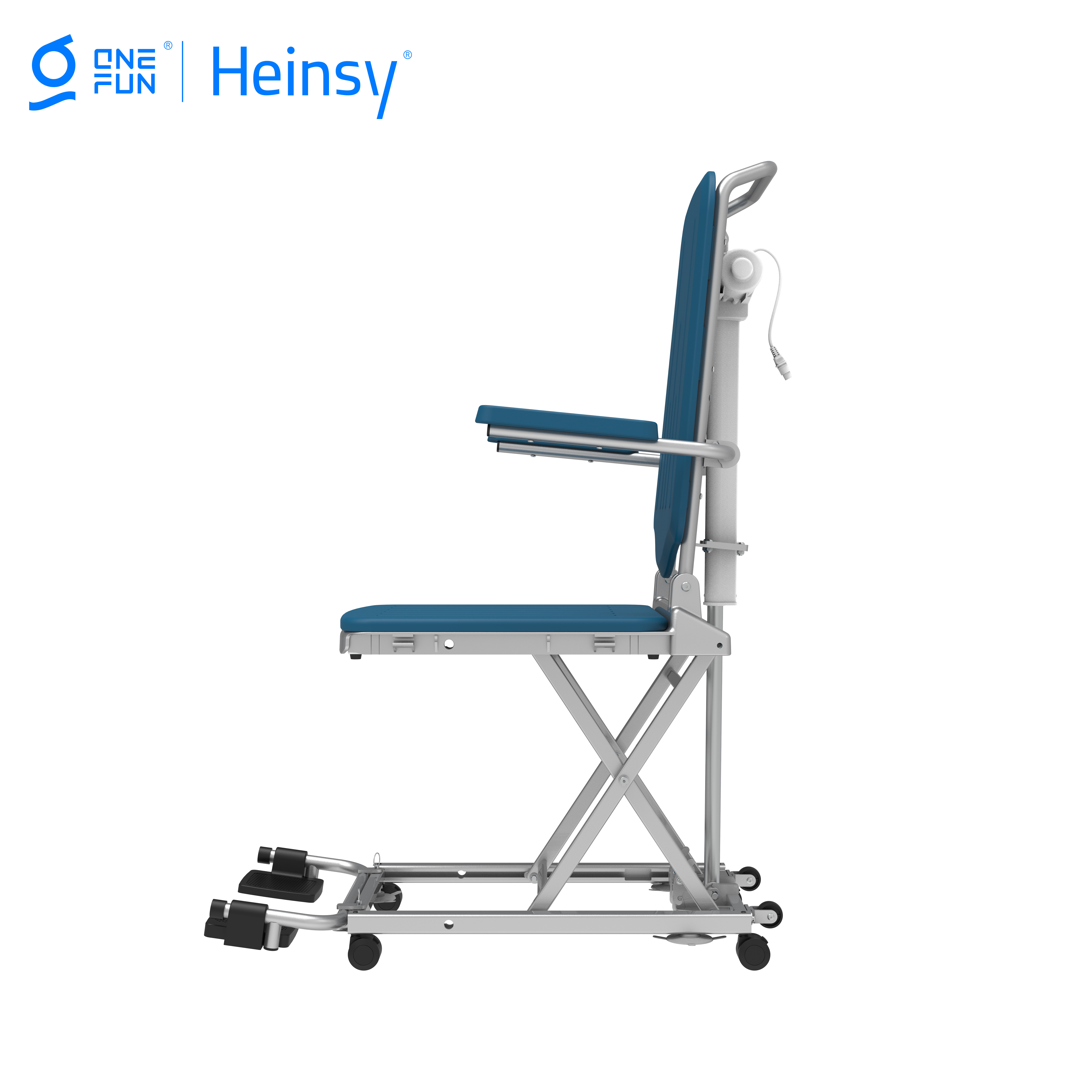

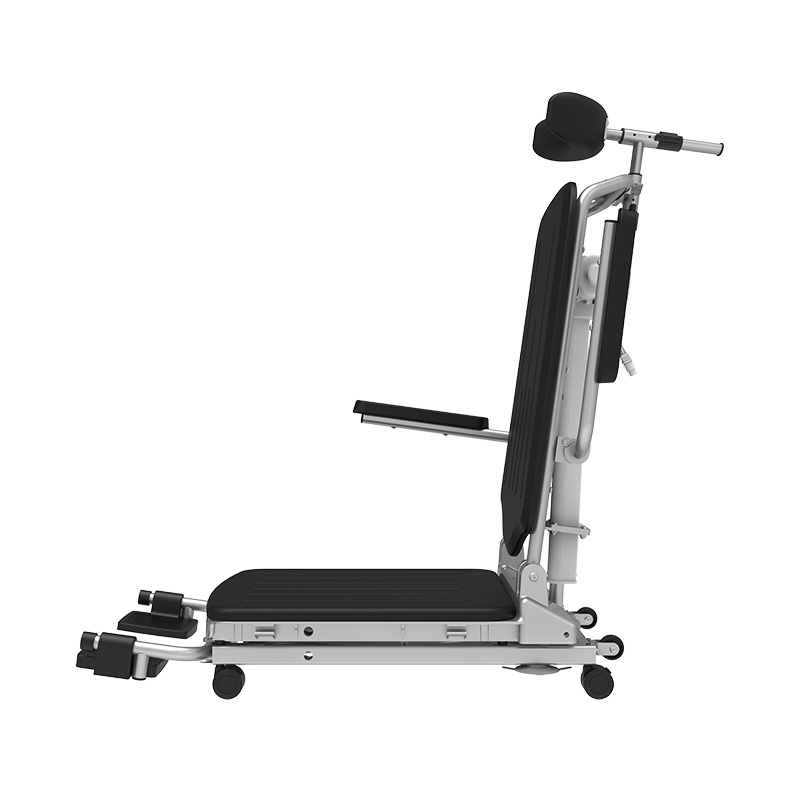

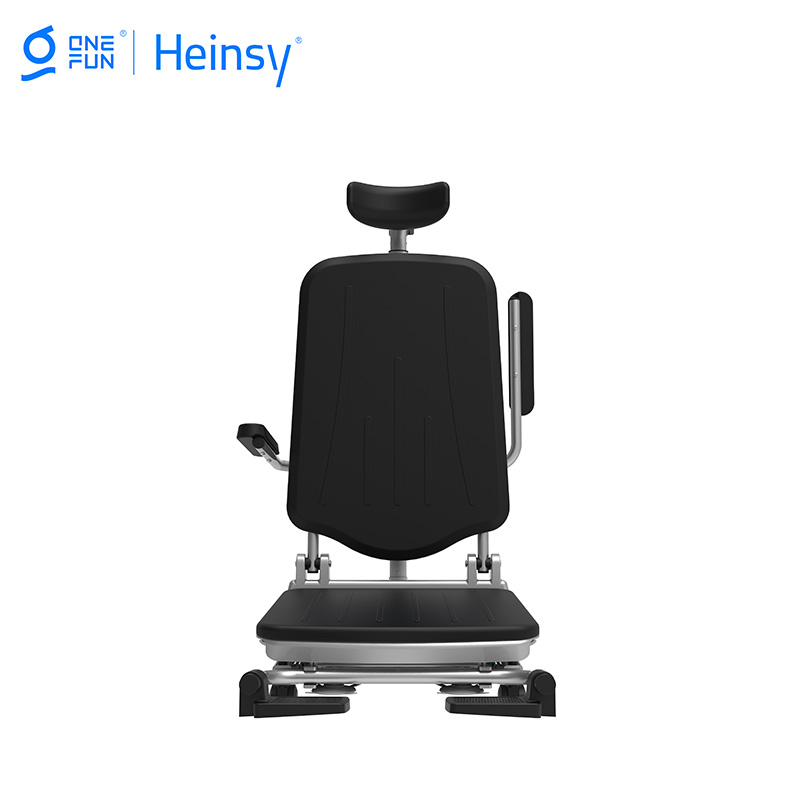

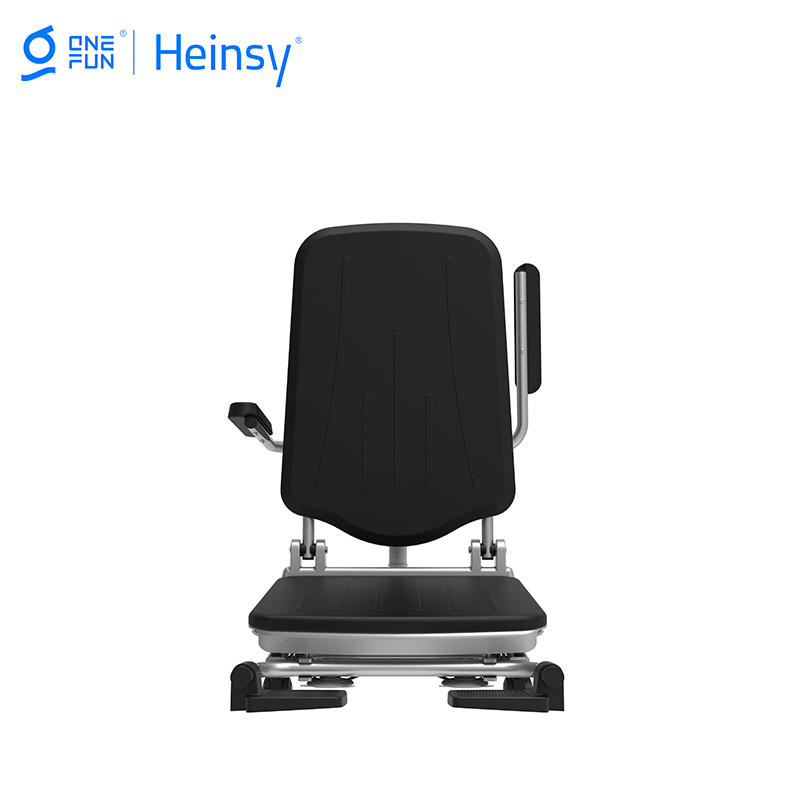

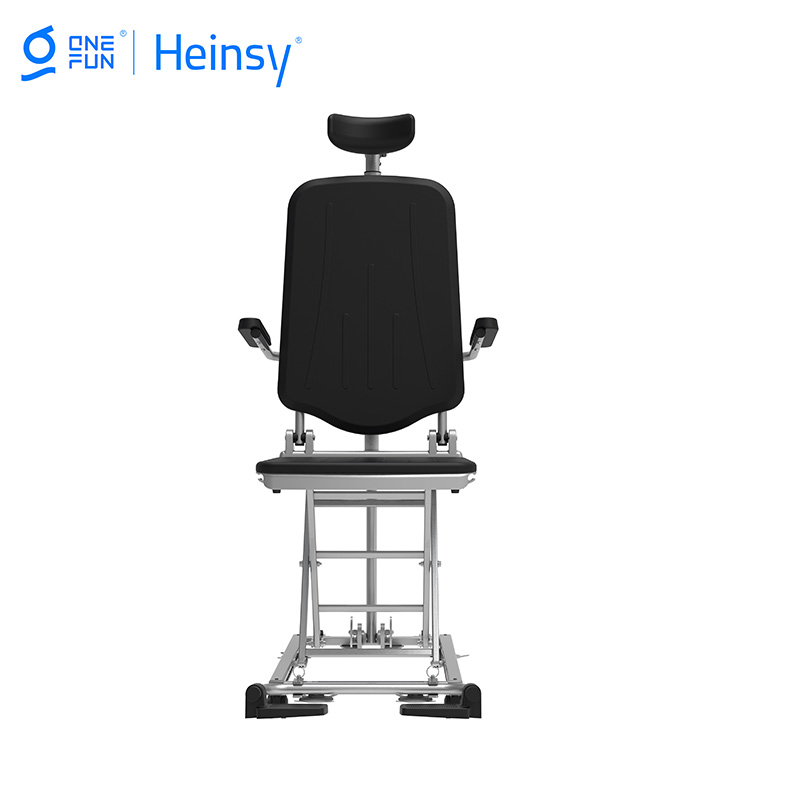

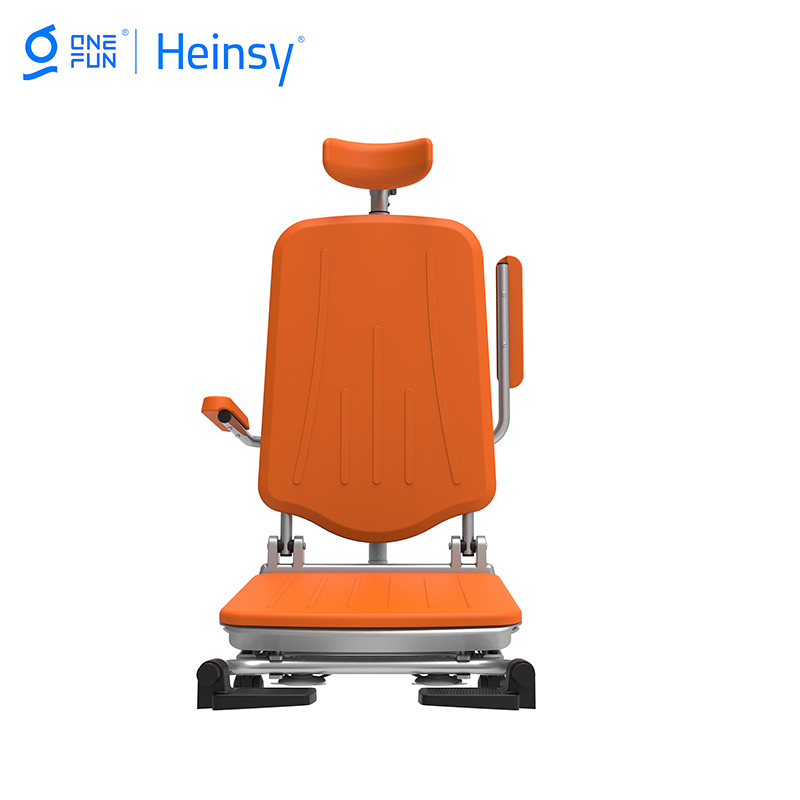

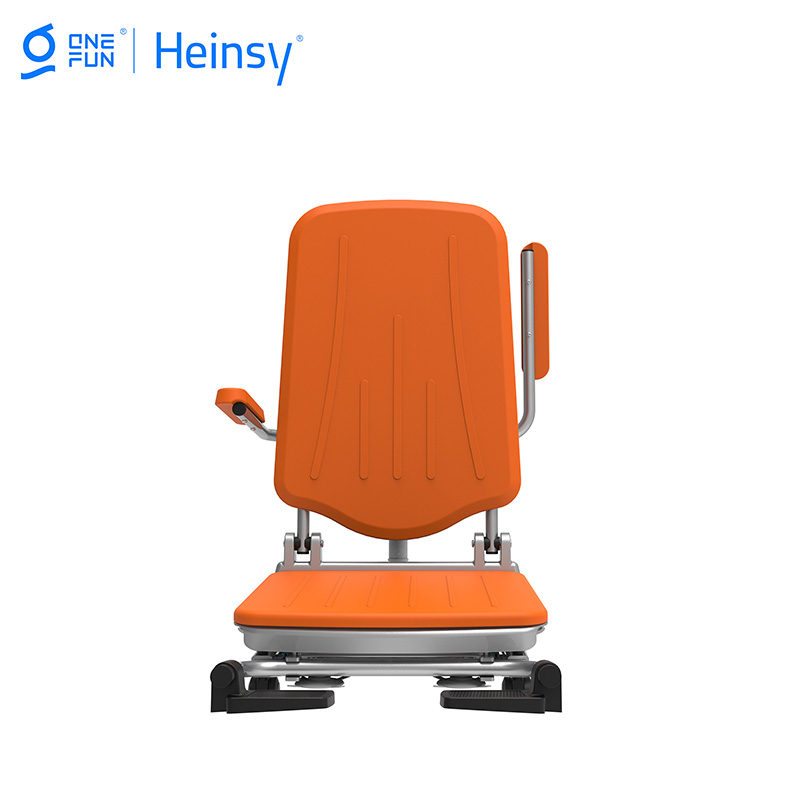

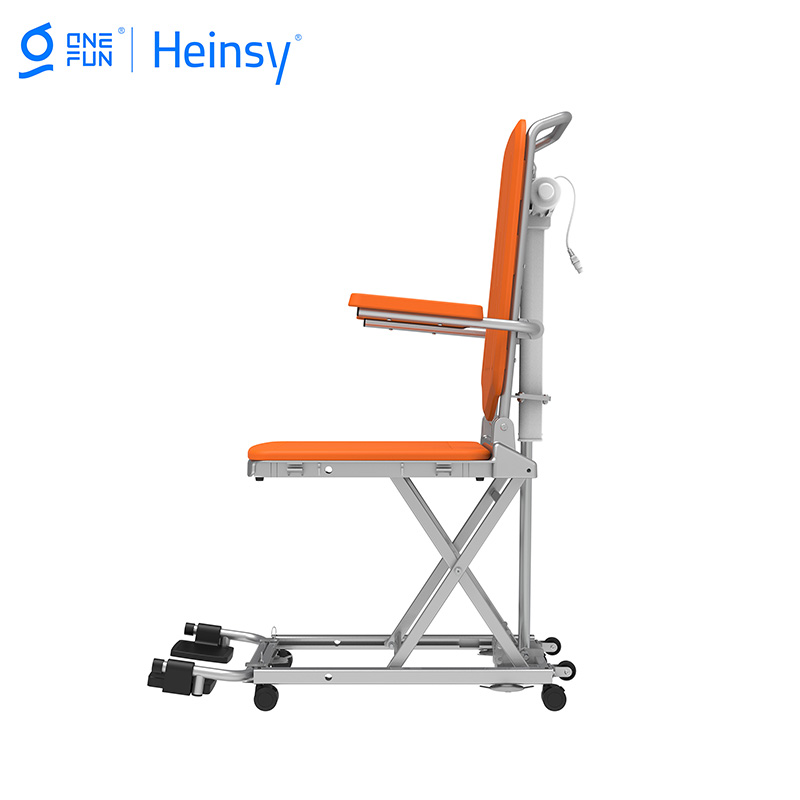

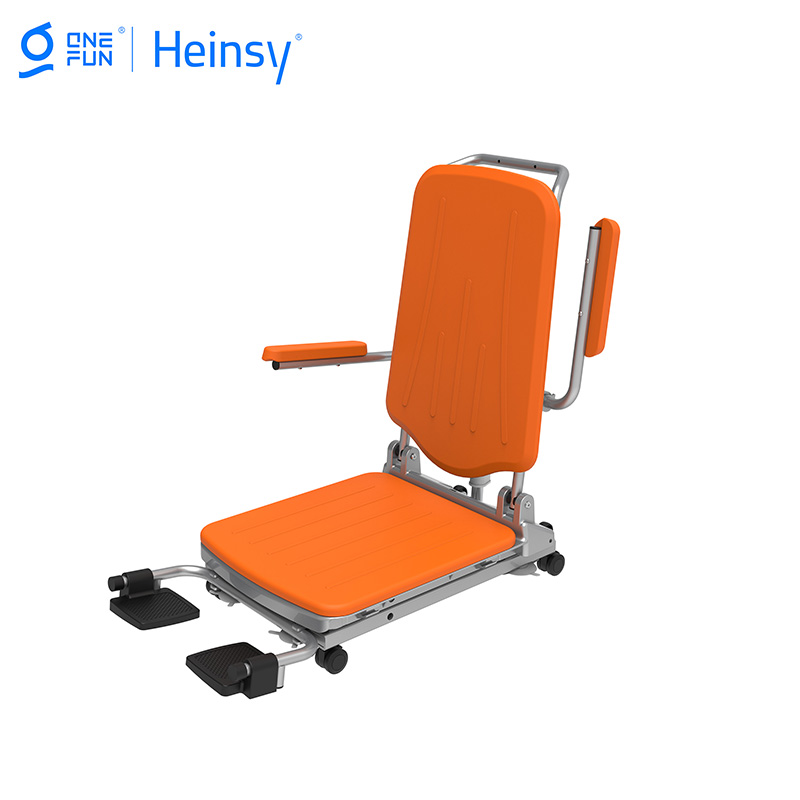

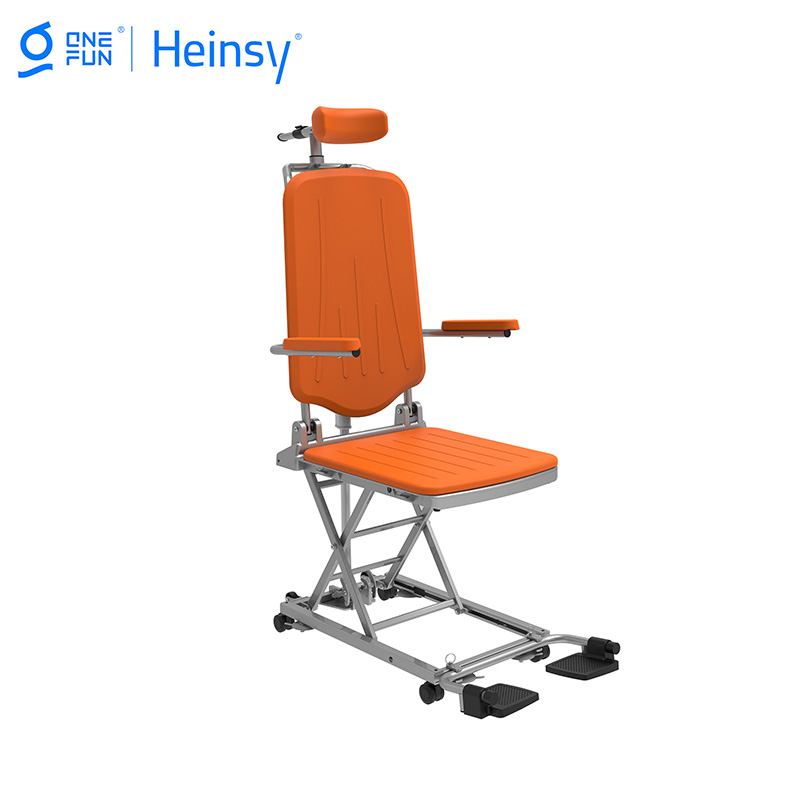

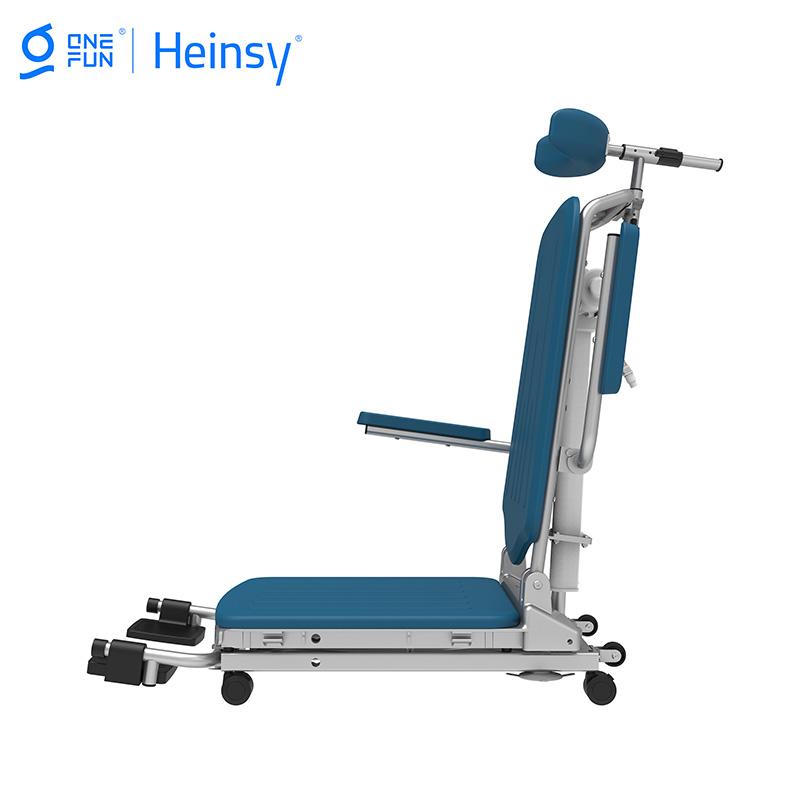

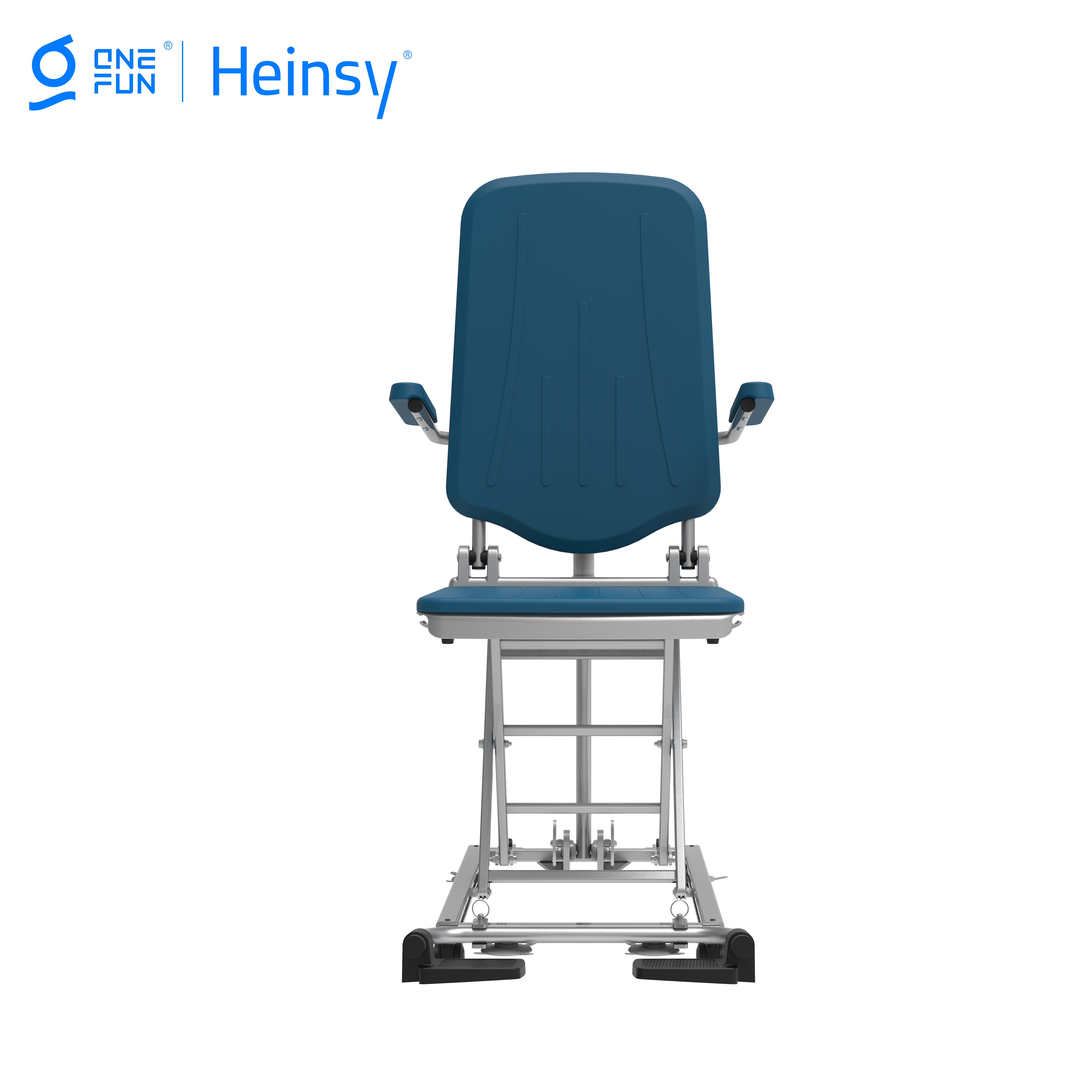

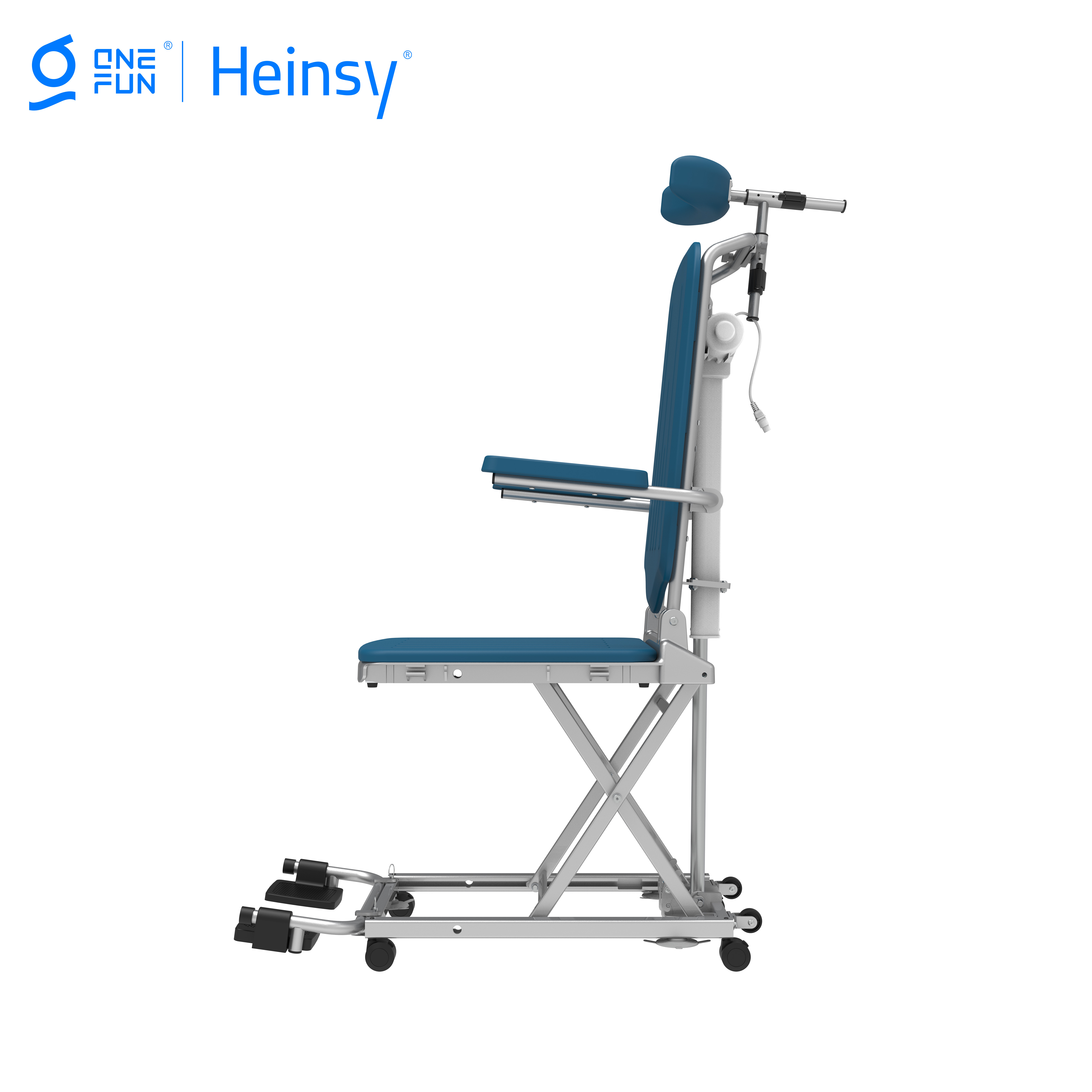

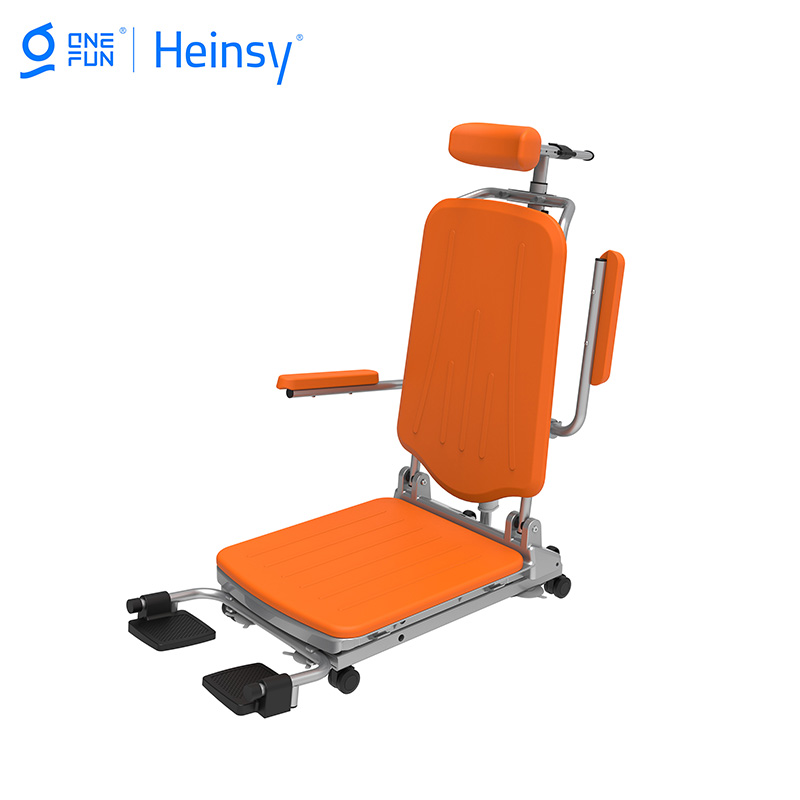

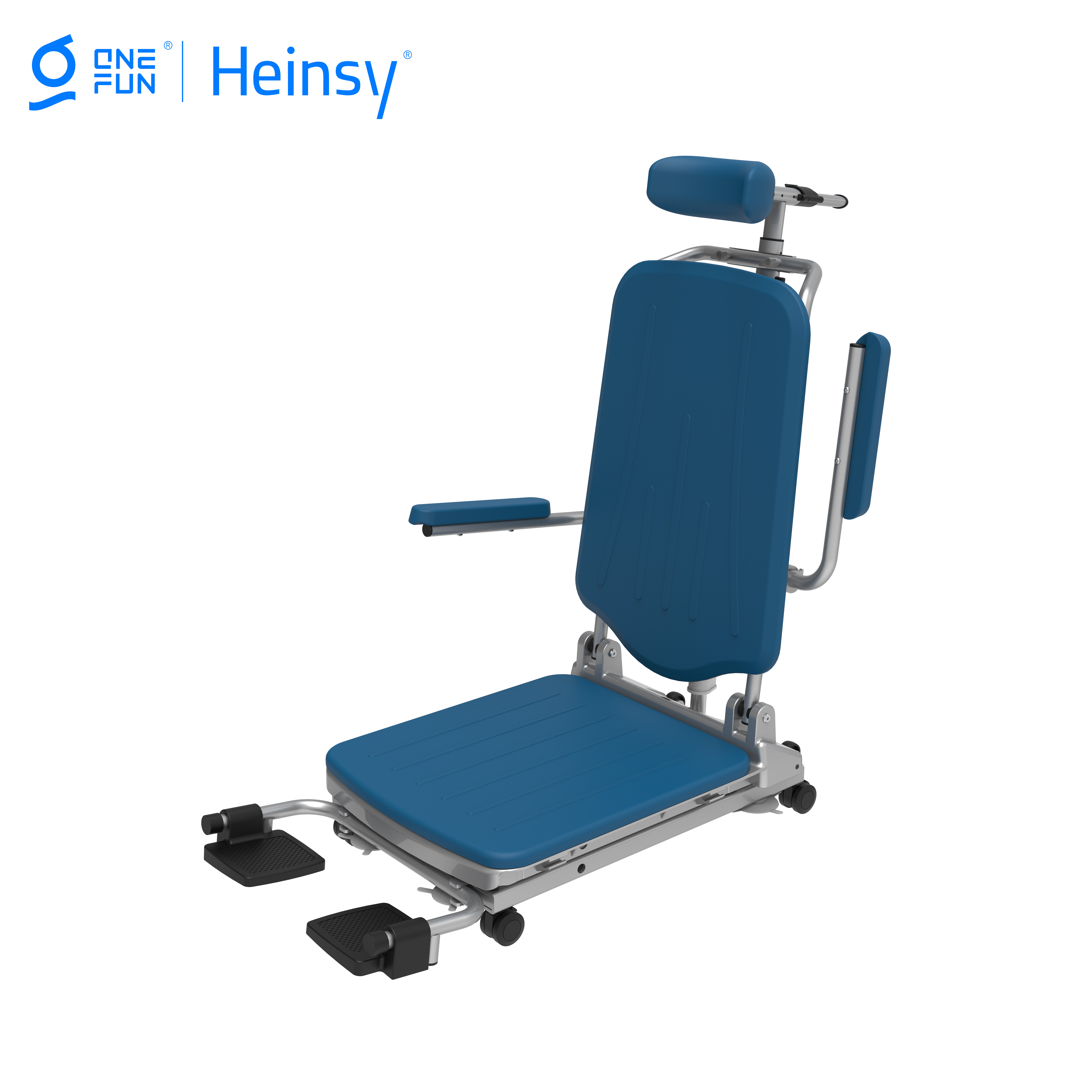

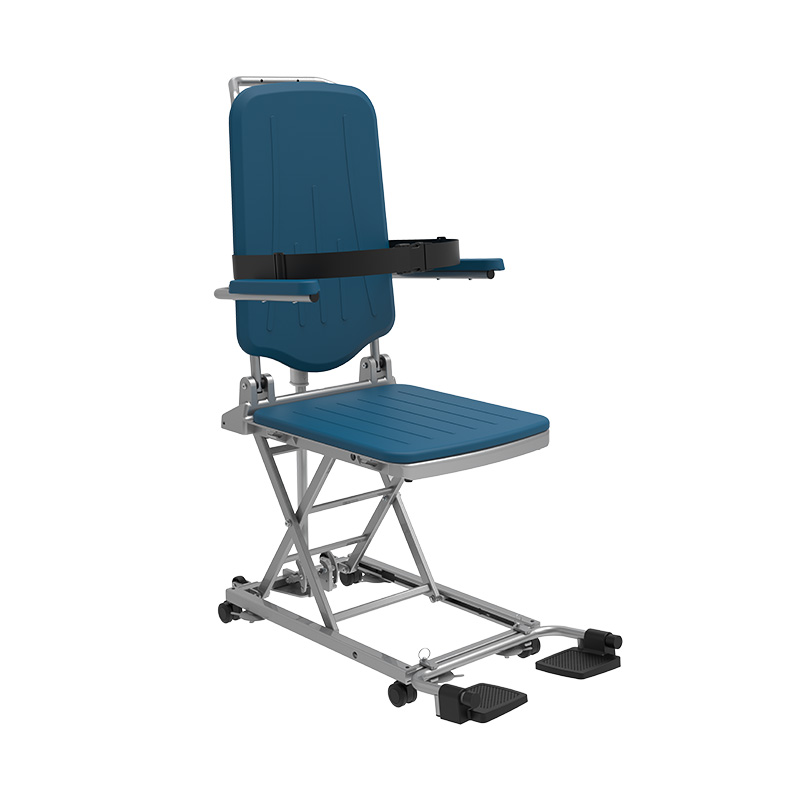

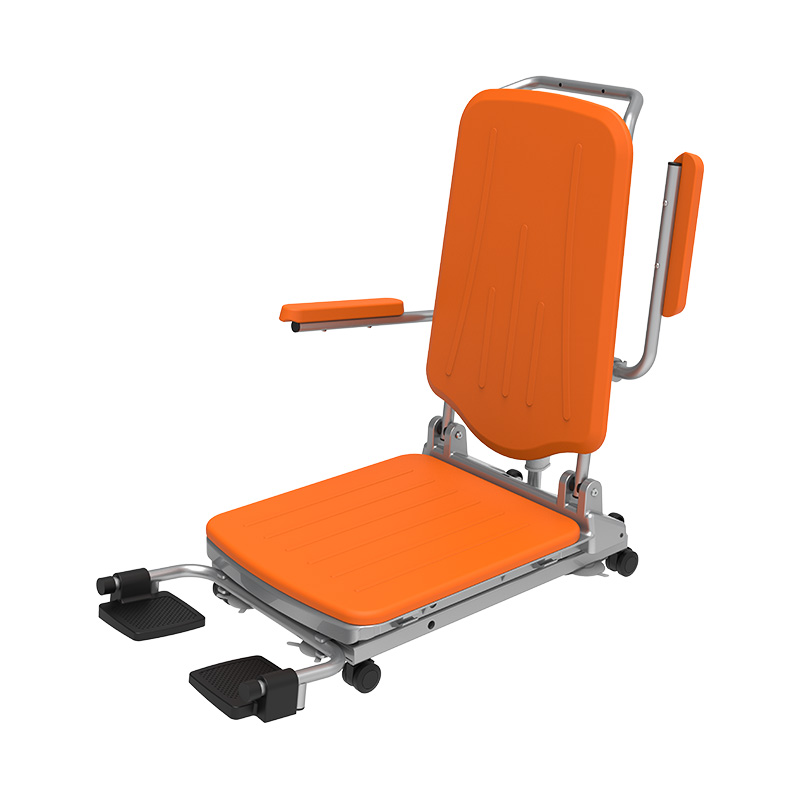

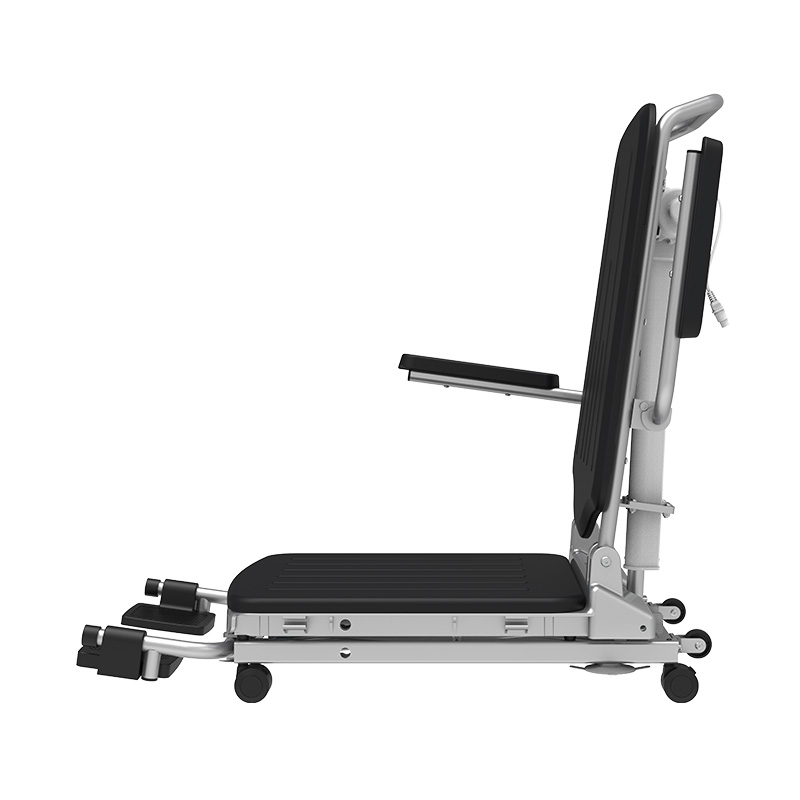

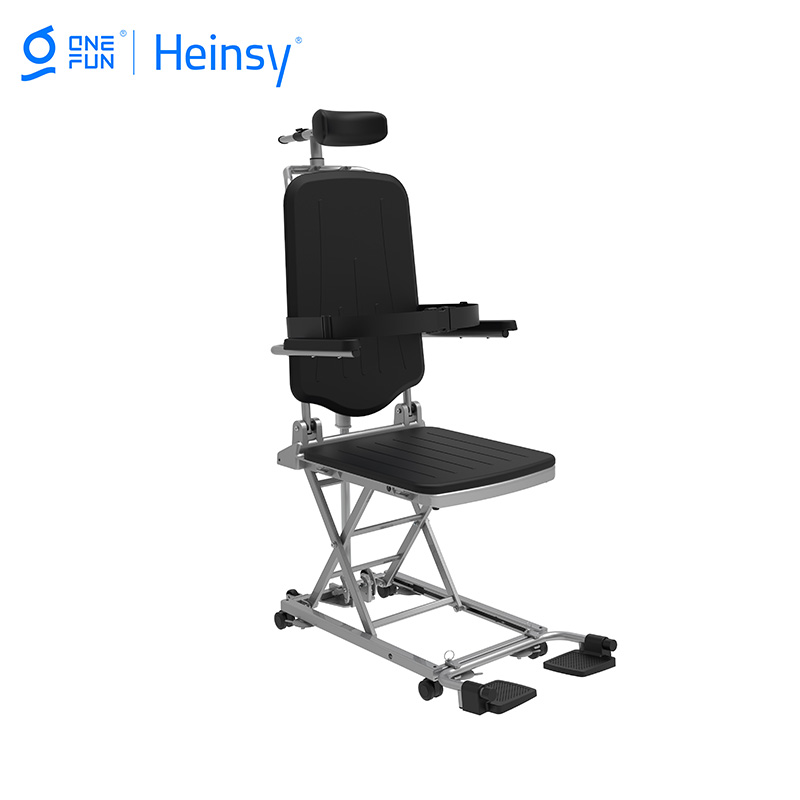

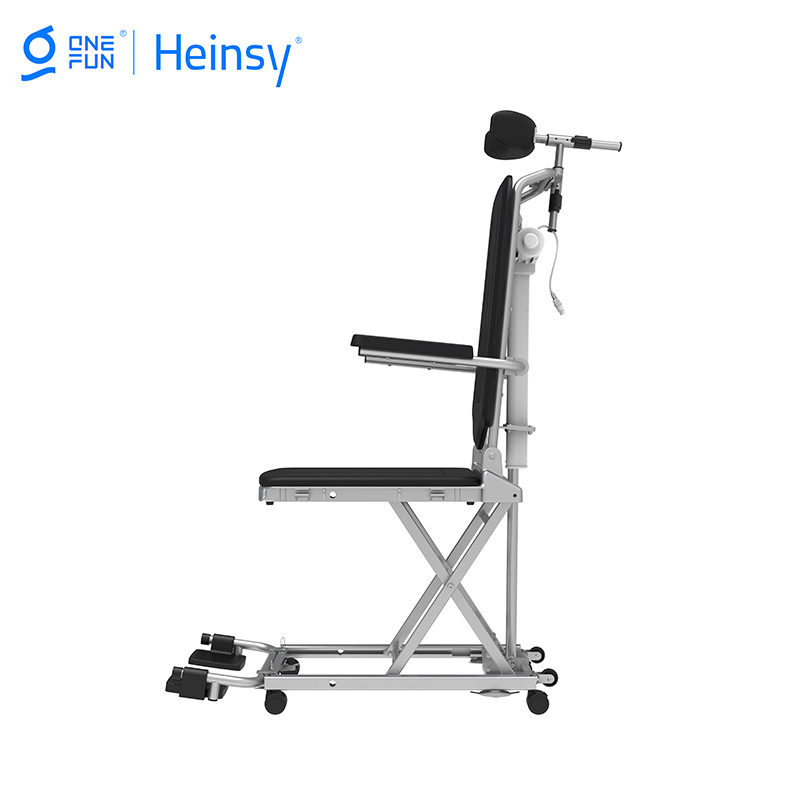

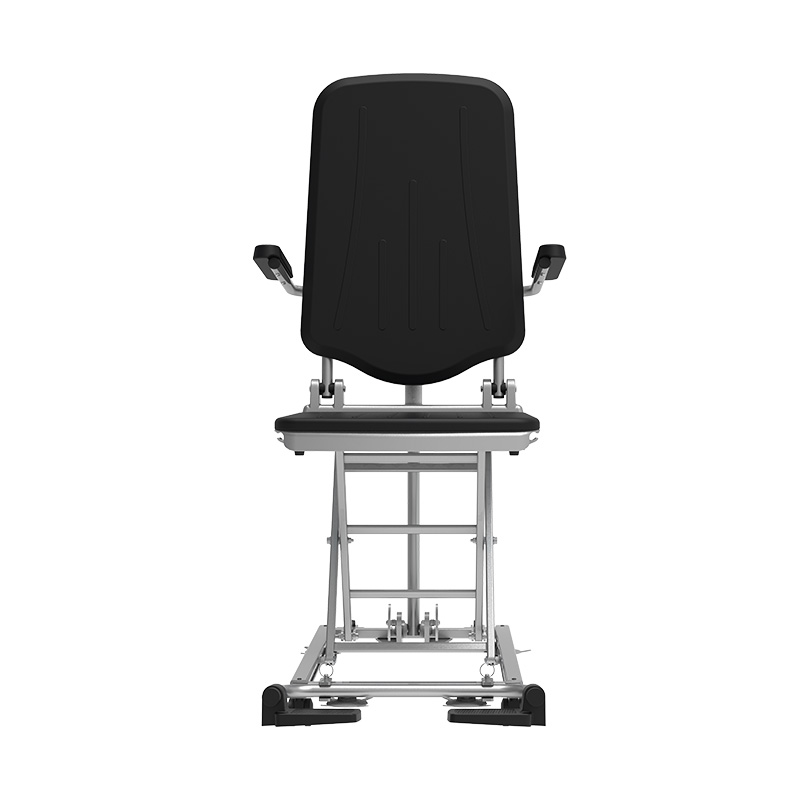

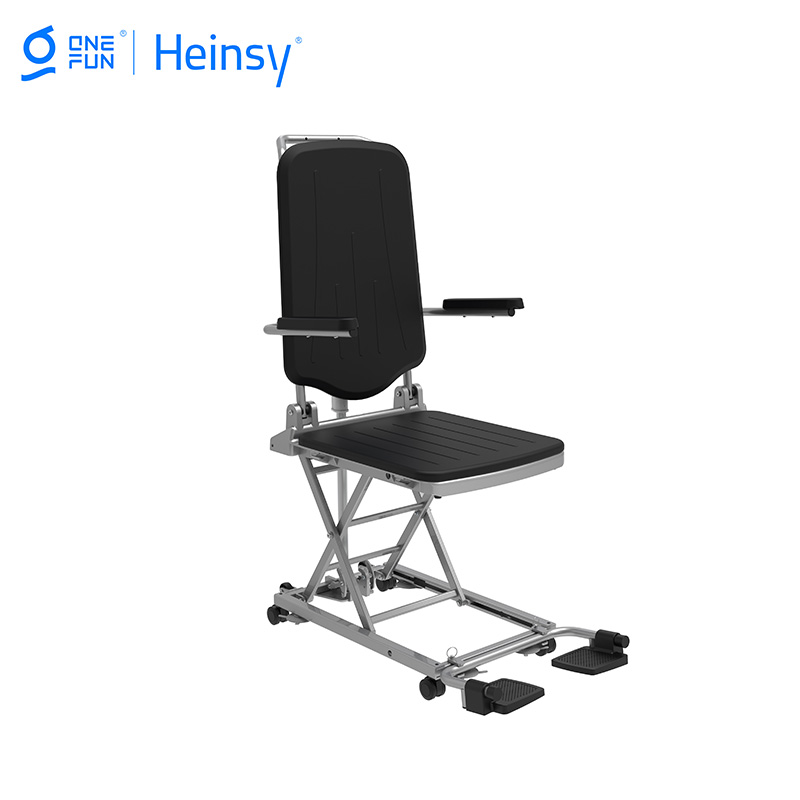

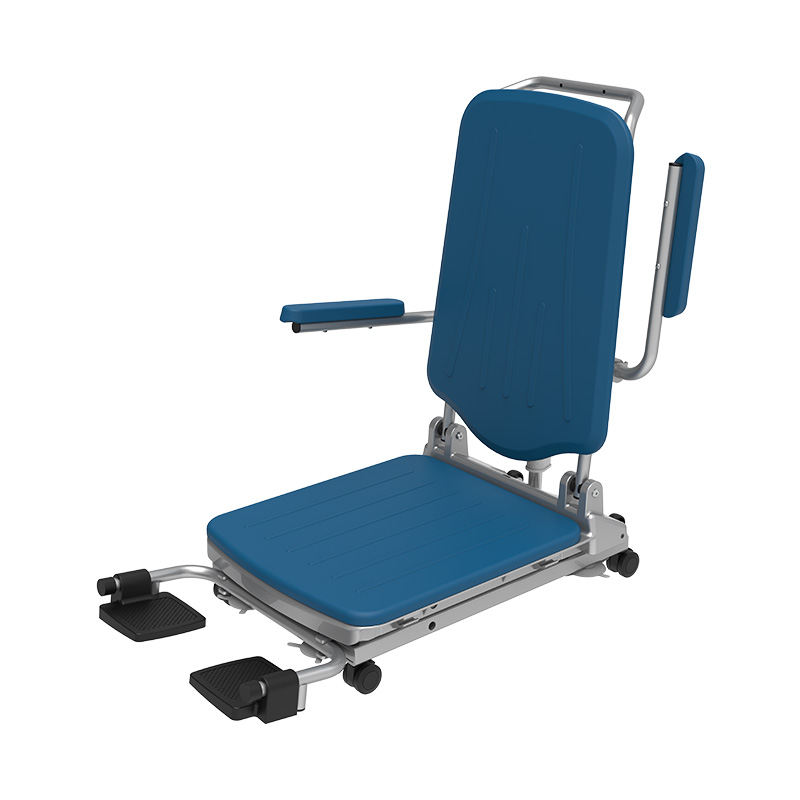

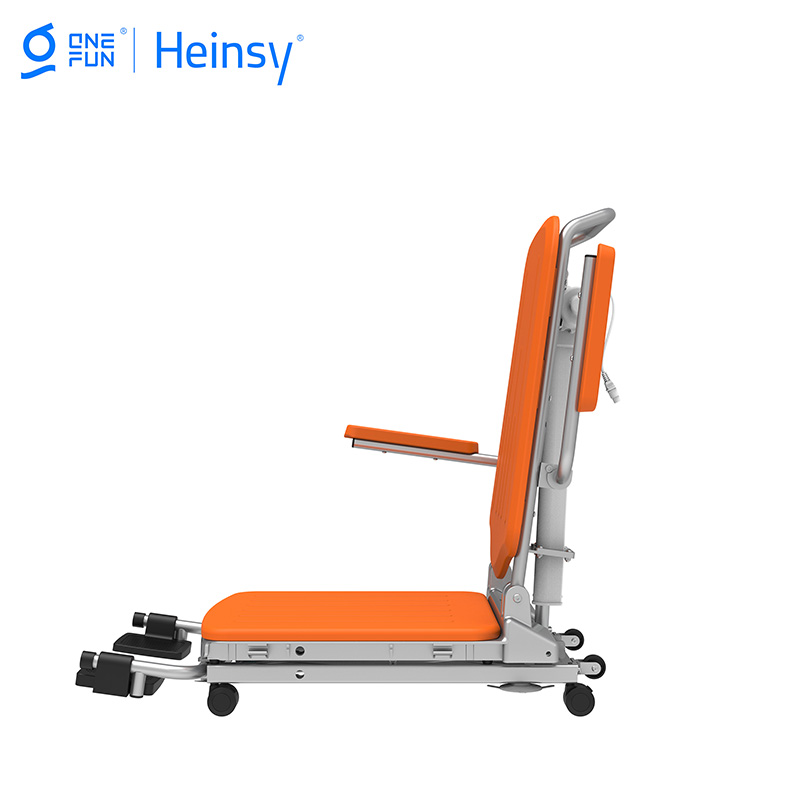

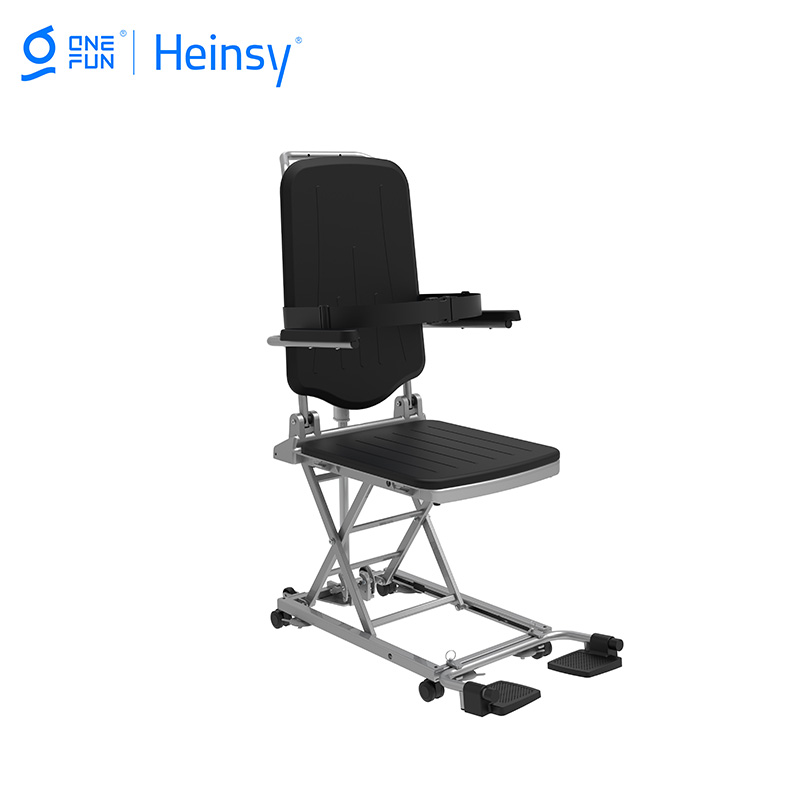

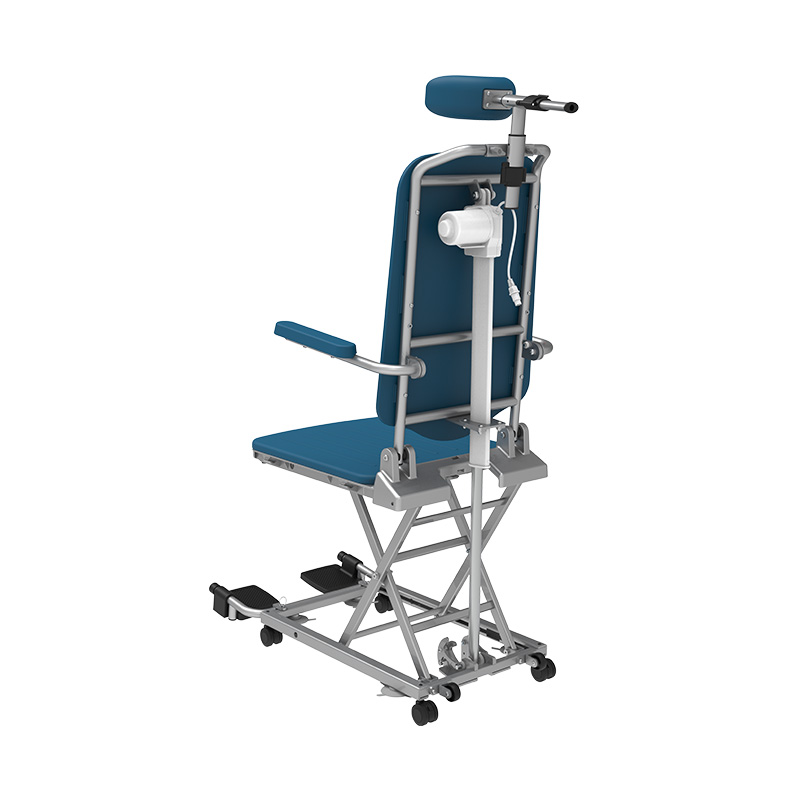

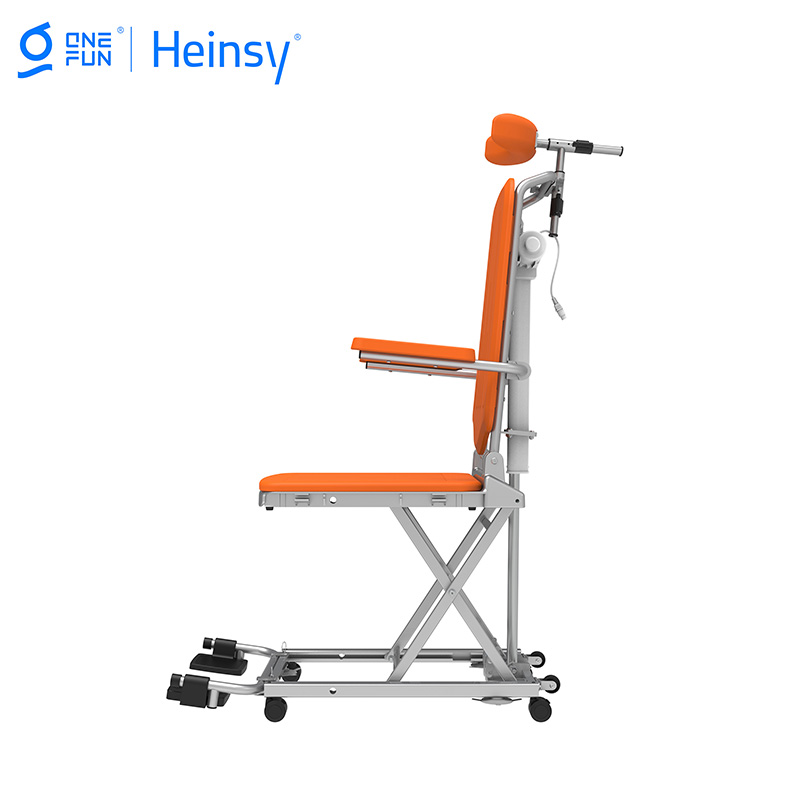

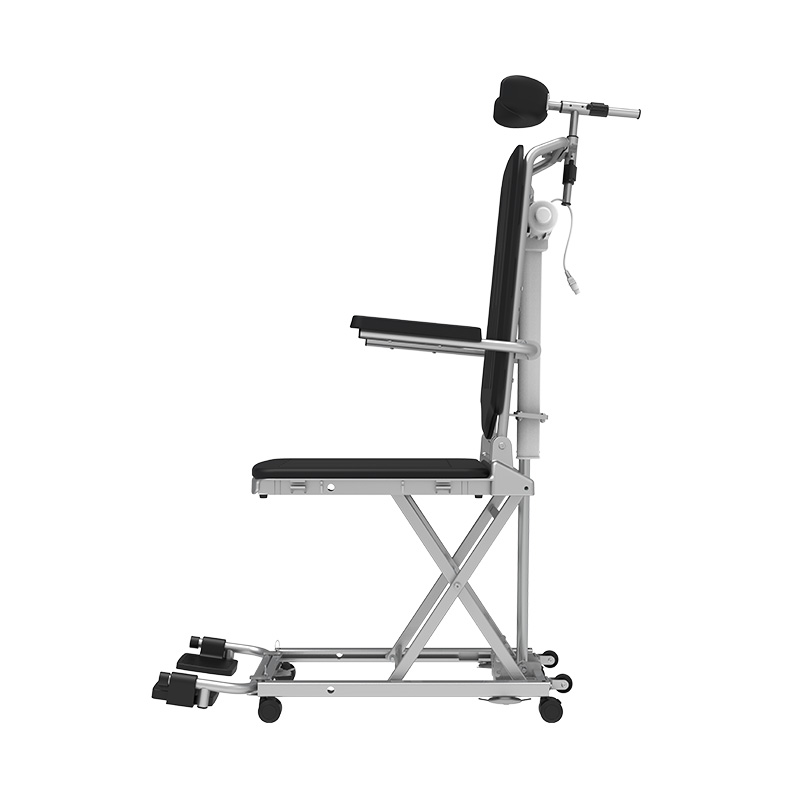

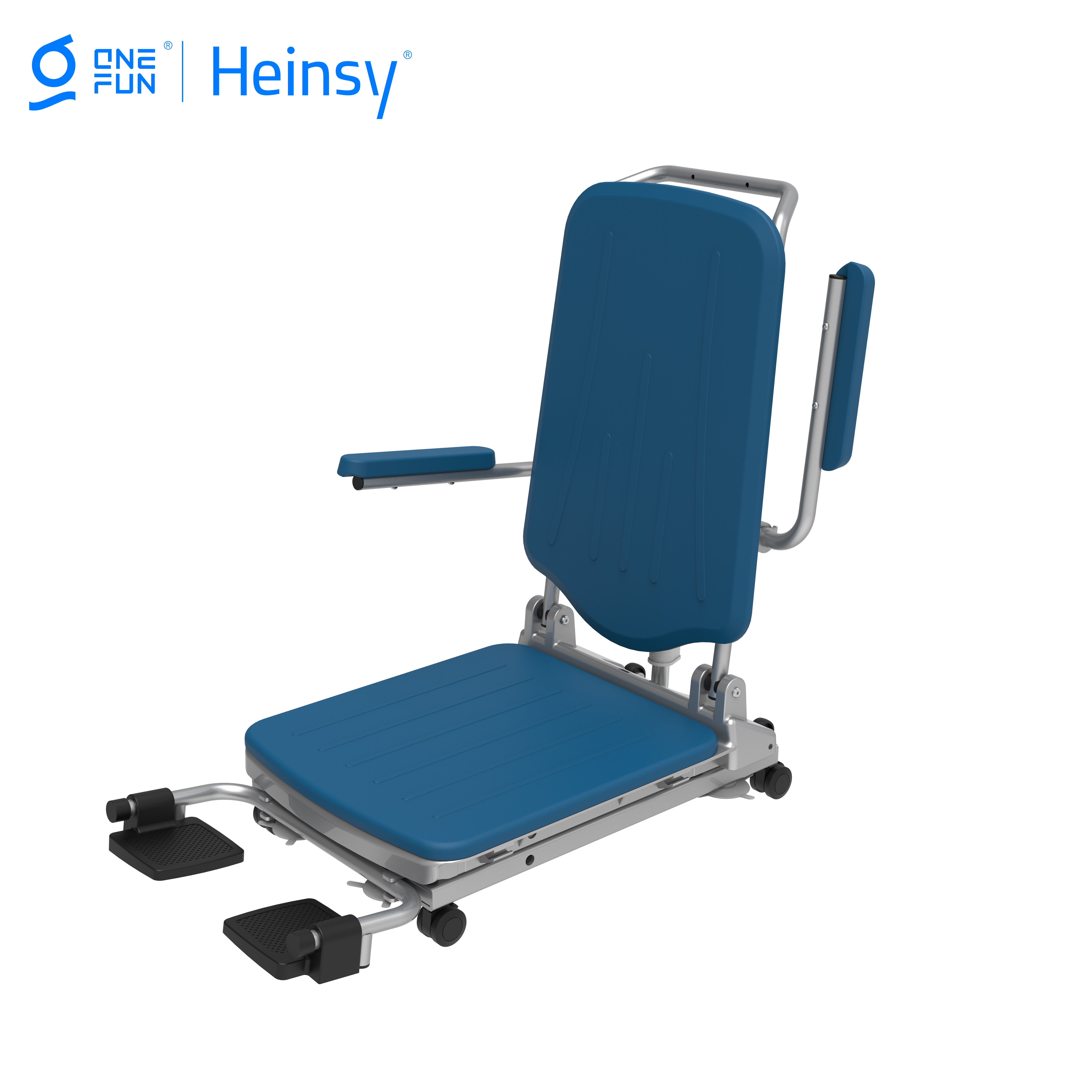

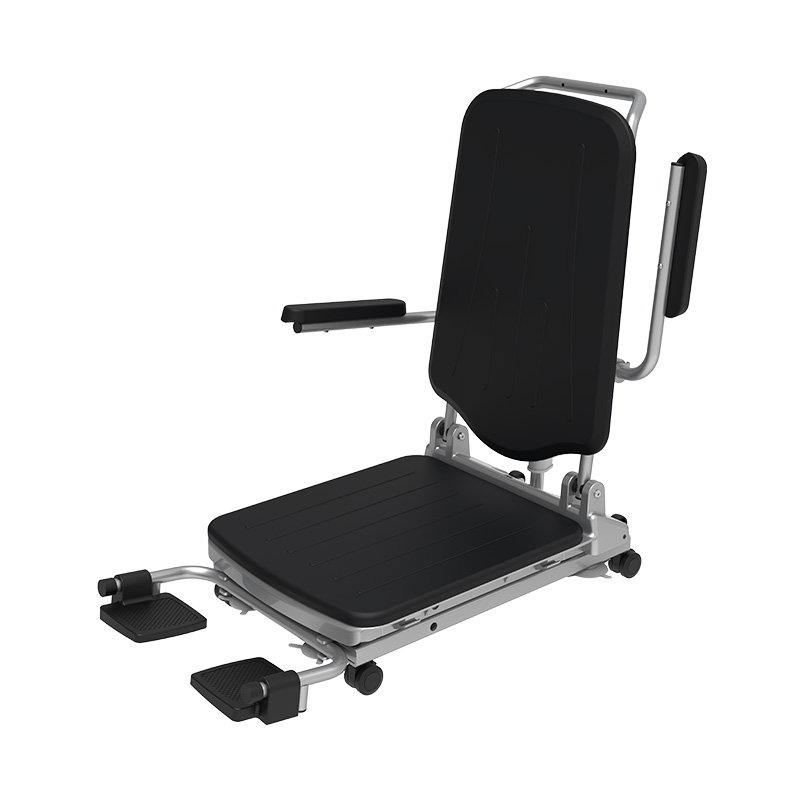

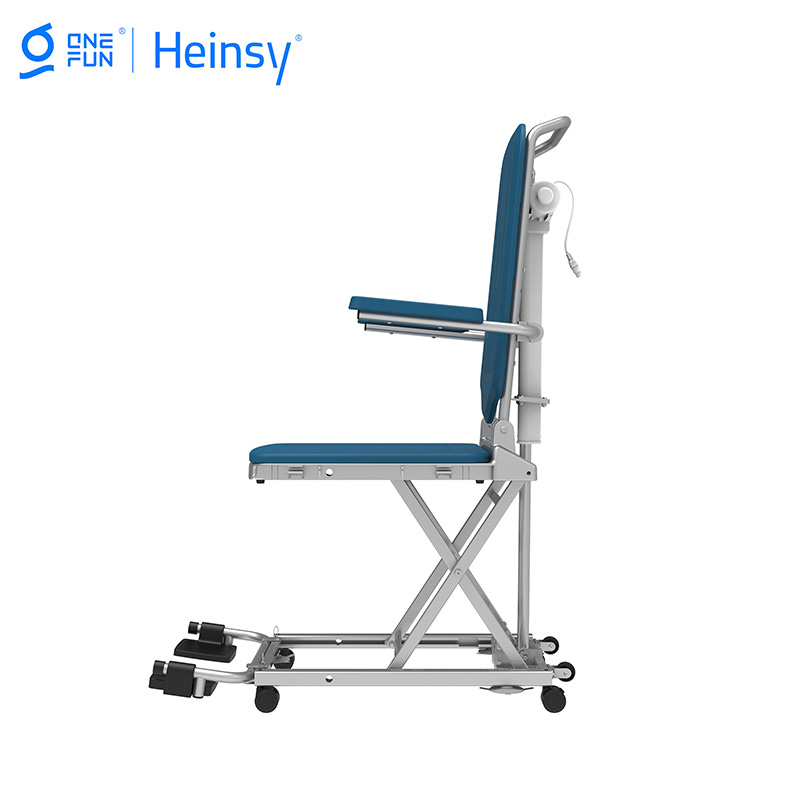

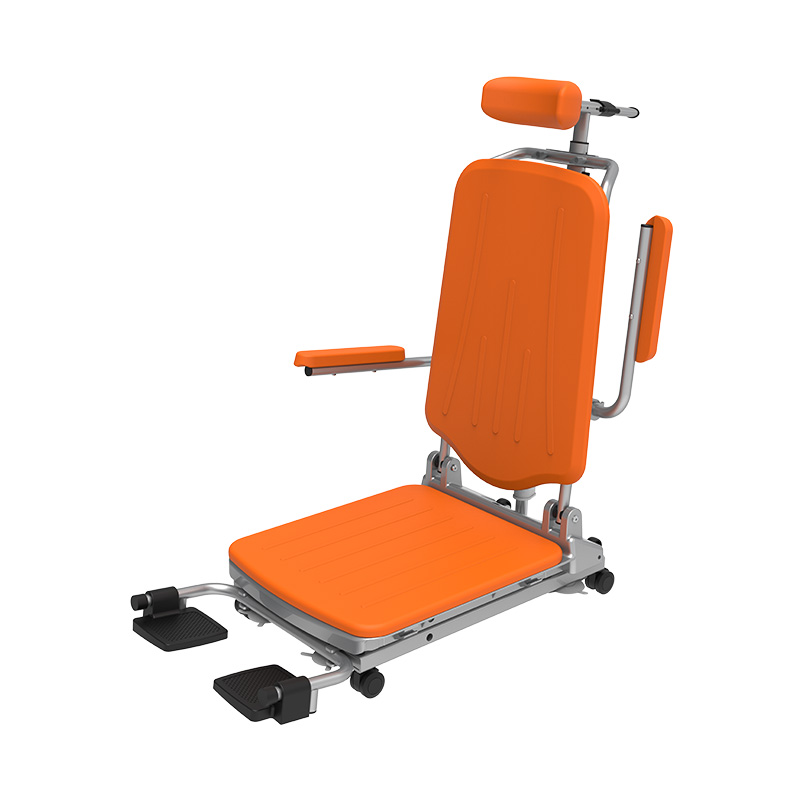

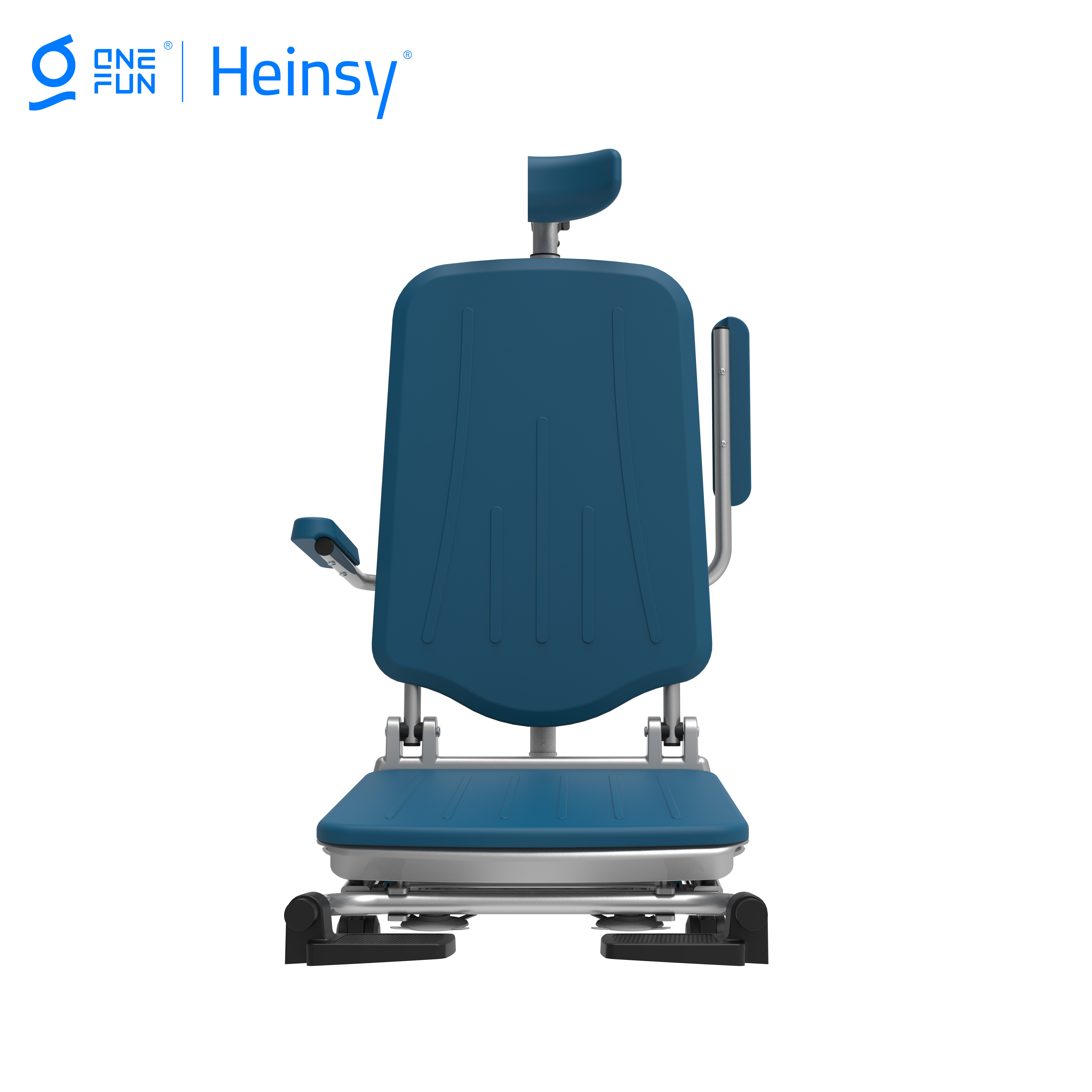

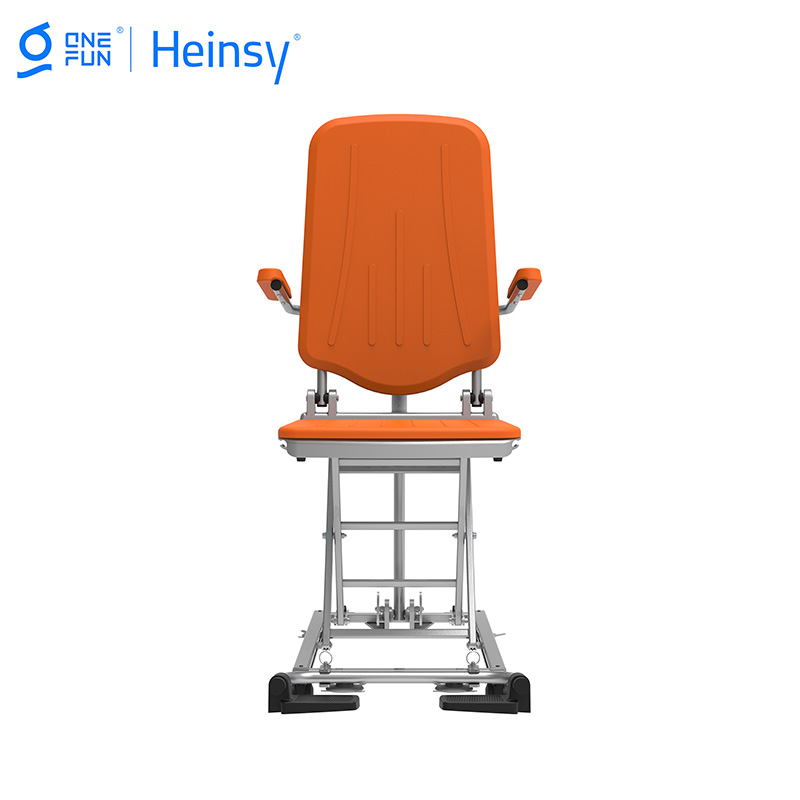

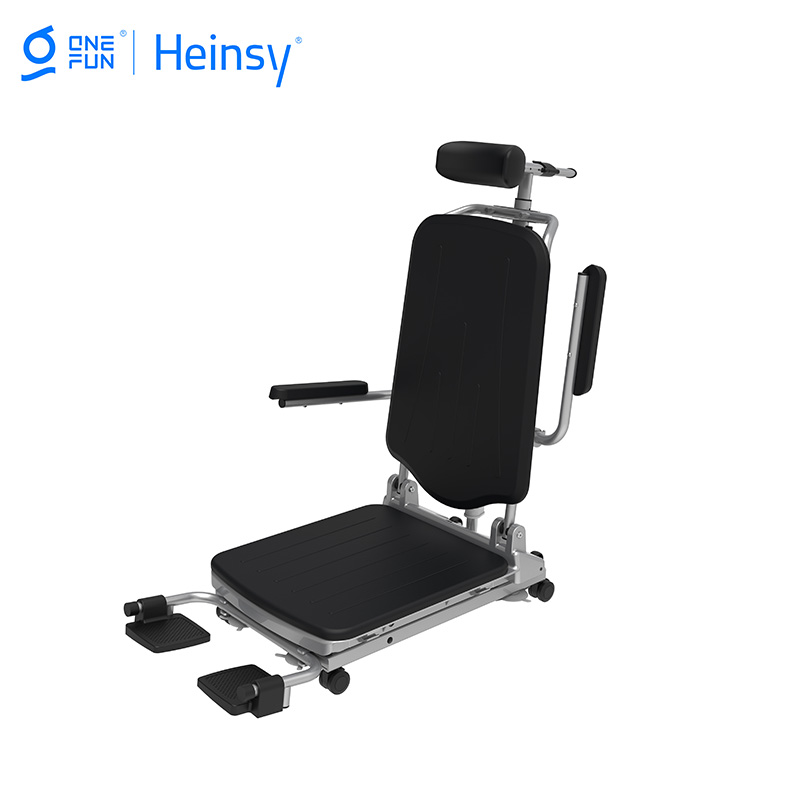

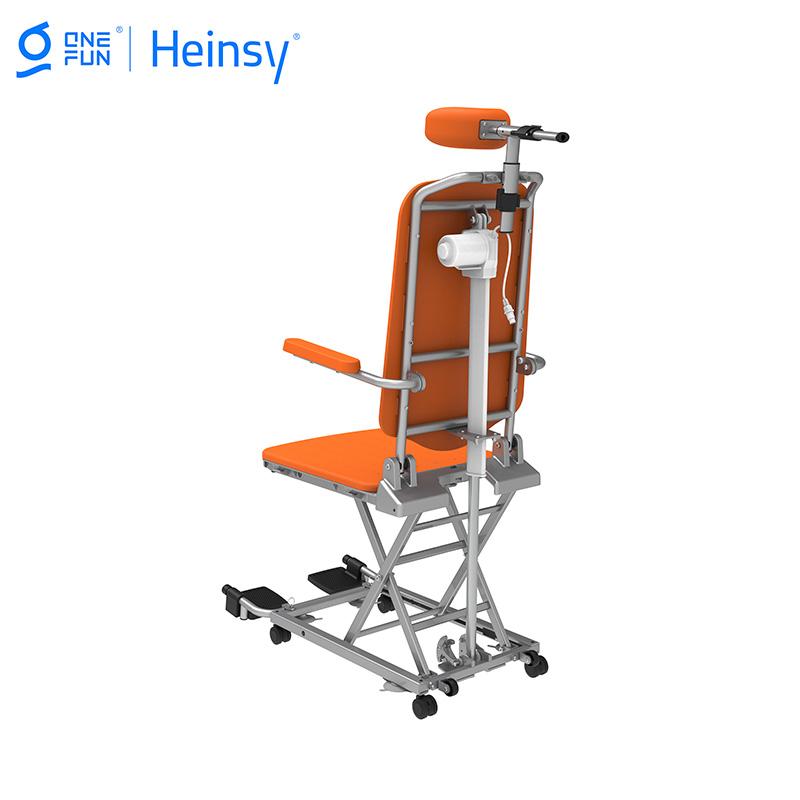

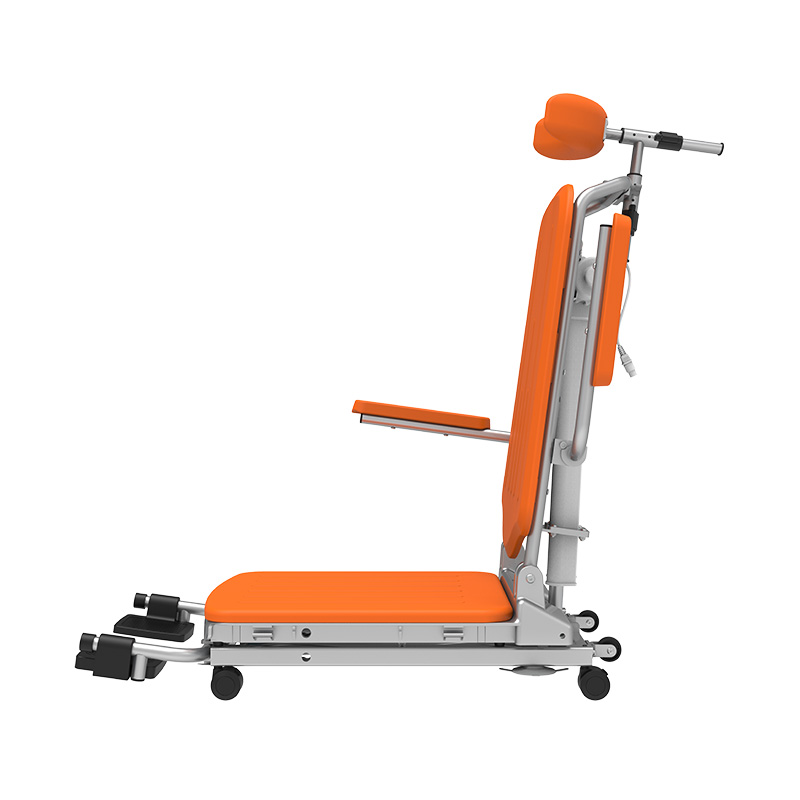

The HES-609 electric height-adjustable chair is designed with "customized fit, safety and comfort, convenience and practicality" as its core design concept. It is specially designed to meet the needs of rehabilitation care and daily life, and has multi-dimensional adjustment functions and humanized details to adapt to various usage scenarios.

Features:

I. Comprehensive Safety Protection, Ensuring a Solid Foundation for Usage
Safety is the core priority in product design. A multi-layered protection system is formed through material selection, structural design, and functional configuration. The seat comes standard with a seatbelt, effectively securing the user. Combined with four anti-slip suction cups on the bottom, it significantly improves stability during seating and transfer, preventing accidental slippage. The lightweight aluminum frame (net weight 15.2kg, total weight 18.24kg) balances load-bearing capacity and durability, with a maximum load capacity of 200kg, accommodating users of different weights. The 24VDC safe operating voltage and 100-240VAC wide-range charging compatibility (1.5A 50/60Hz) meet international electrical safety standards, ensuring stable and reliable charging and eliminating electrical risks.

II. Humanized Comfort Fit, Precisely Matching Diverse Needs
With user experience at its core, multi-dimensional adjustments and detailed design enhance seating comfort. Equipped with a 20mm thick removable EVA waterproof seat cushion, it not only offers excellent cushioning but also features waterproof material for easy cleaning and maintenance, making it suitable for long-term use. The seat height is electrically adjustable from 113-488mm (adjustment range up to 375mm), and its optimal dimensions of 450mm seat width, 500mm seat depth, and 680mm backrest height precisely accommodate the body curves of users of different heights and builds. The backrest supports 90°-120° (30° tilt range) angle adjustment, providing users with a comfortable experience in various postures such as sitting and reclining, while also reducing the burden on caregivers, making getting up and lying down easier.

III. Convenient Design, Balancing Usage and Storage Needs
Focusing on daily operation and space utilization needs, it creates an efficient and convenient user experience. Featuring a compact folding structure, the folded dimensions are only 808×390×253 mm, and its lightweight design of 18.24 kg makes it easy to store at home or carry when traveling, without taking up too much space. The aluminum frame combines high strength with lightweight characteristics, making it easier to move, and is equipped with 2-inch swivel casters (optional) to further enhance its mobility. The removable seat cushion and simple structural design reduce the difficulty of cleaning and maintenance, making it more worry-free for long-term use.

IV. Flexible Customization Services, Expanding Scene Adaptability
It supports personalized customization for all scenarios to meet the diverse needs of different users. Depending on the usage scenario and functional requirements, optional Nicoles accessories, positioning bolts, and casters can be selected to flexibly expand the product's functional boundaries. The wide range of seat height adjustment, the 200 kg load-bearing capacity, and the ergonomic size configuration make it suitable for both daily home use and professional scenarios such as rehabilitation institutions and senior living communities, comprehensively covering the rehabilitation assistance and quality of life improvement needs of different users.

Recommended Users:

I. Core Target Audience: Precisely Matching Diverse Needs
1. Home Rehabilitation Users (Core Users)
Applicable Group: Individuals with limited mobility due to old age, physical disability, post-operative rehabilitation, etc., requiring long-term home care (weight ≤200kg).
2. Elderly Care Institution/Rehabilitation Center Users
Applicable Group: Individuals receiving intensive care in professional institutions such as elderly care communities, rehabilitation hospitals, and nursing homes (including users of different heights and body types).
3. Individuals with Limited Mobility Needing Mobility
Applicable Group: Individuals with limited mobility who frequently switch between home, hospital, and outdoor settings, or who have short-term outing needs.
4. Individuals with Severe Care Needs (Customized Adaptation)
Applicable Group: Individuals with severe mobility impairments who require long-term bed rest, rely on full-time caregivers, or have specific positioning requirements.

II. Core Application Scenarios: Full-Scenario Coverage, Adapting to Different Needs
1. Daily Home Scenarios
Typical Scenarios: Living room rest, dining room dining, bedroom living, bathroom assistance (requires a waterproof environment). 2. Professional Rehabilitation/Nursing Scenarios
Typical scenarios: Rehabilitation training in rehabilitation hospitals, centralized care in elderly care institutions, and nursing services in community health service centers.
3. Mobile Travel Scenarios
Typical scenarios: Short-distance family trips, hospital follow-up visits, and visiting relatives and friends.
4. Special Needs Scenarios (Customized Expansion)
Typical scenarios: Home care for severely disabled individuals, long-term postoperative rehabilitation care, and specialized care for disabled elderly individuals.

Product Structure:

I. Core Structural Module Division (Modular Design for Easy Assembly and Maintenance)
1. Supporting Frame System
(Core Structure for Load Bearing and Stability)

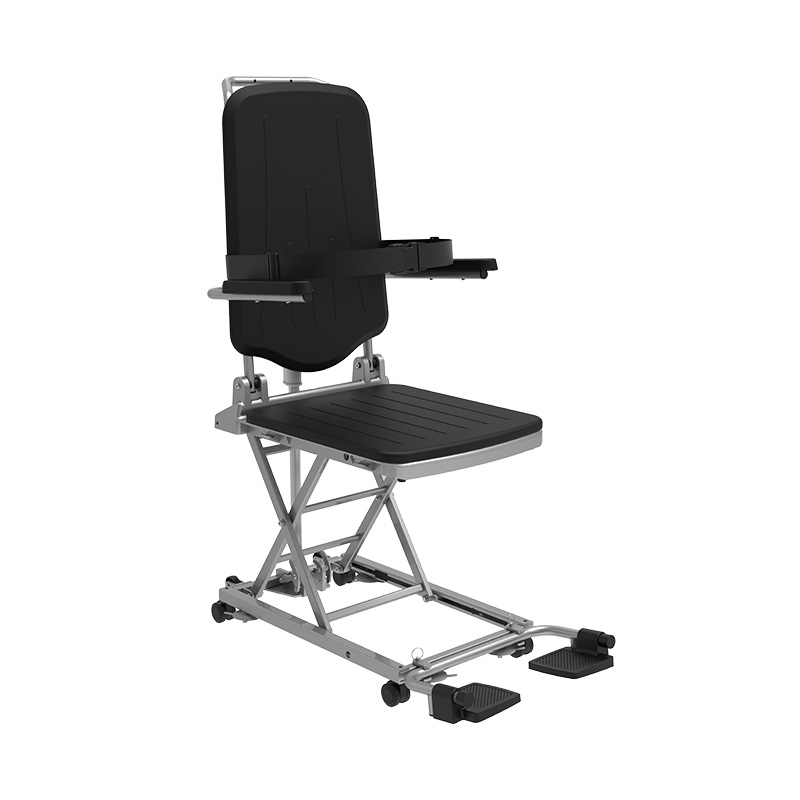

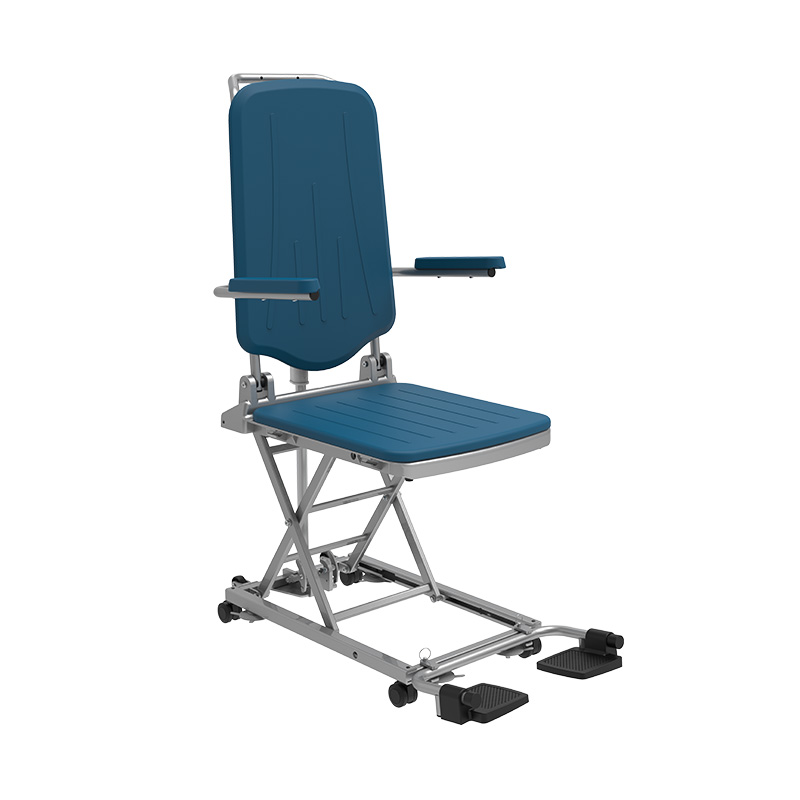

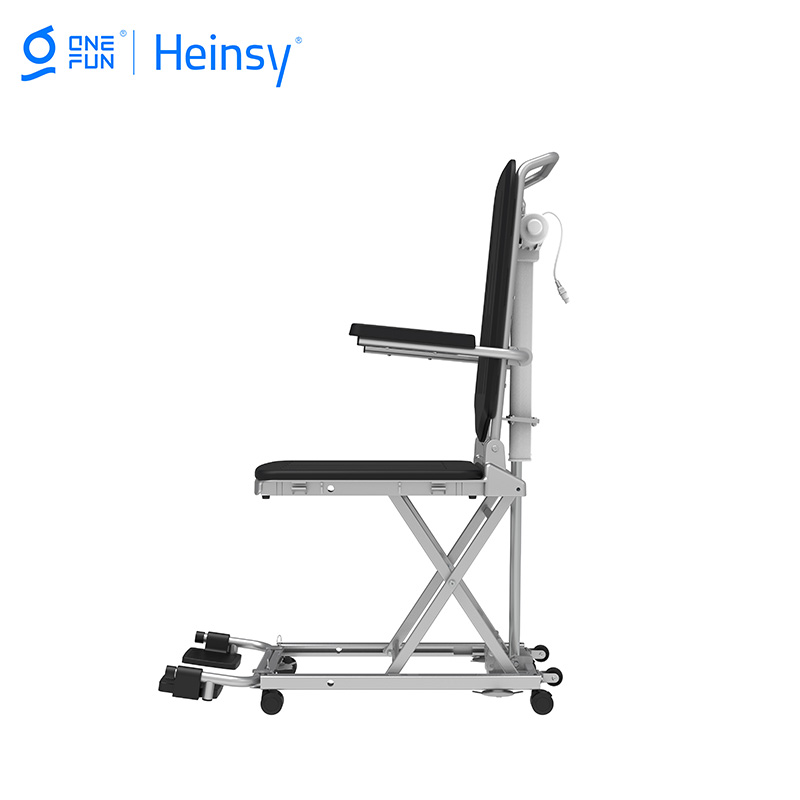

Main Frame:
The lifter features an integrated lightweight aluminum-alloy frame with a net weight of 15.2 kg. The overall frame dimensions are precisely matched with the seating module. Manufactured through stamping and bending processes, the frame achieves both high strength and a lightweight profile, supporting a maximum load capacity of 200 kg.
With a total width of 560 mm, the symmetrical structural design optimizes force distribution, prevents localized stress concentration, and significantly enhances structural durability.

Bottom Support Structure:
The base of the frame is equipped with four anti-slip suction cups, evenly positioned at the four corners. The large contact area and vacuum adsorption principle improve ground adherence and stability.
Wheel mounting interfaces are reserved, supporting optional 2-inch swivel casters, enabling quick switching between “fixed” and “mobile” modes, accommodating different usage scenarios.

2. Seating Module
(Primary Carrier of Comfort and Adjustment Functions)

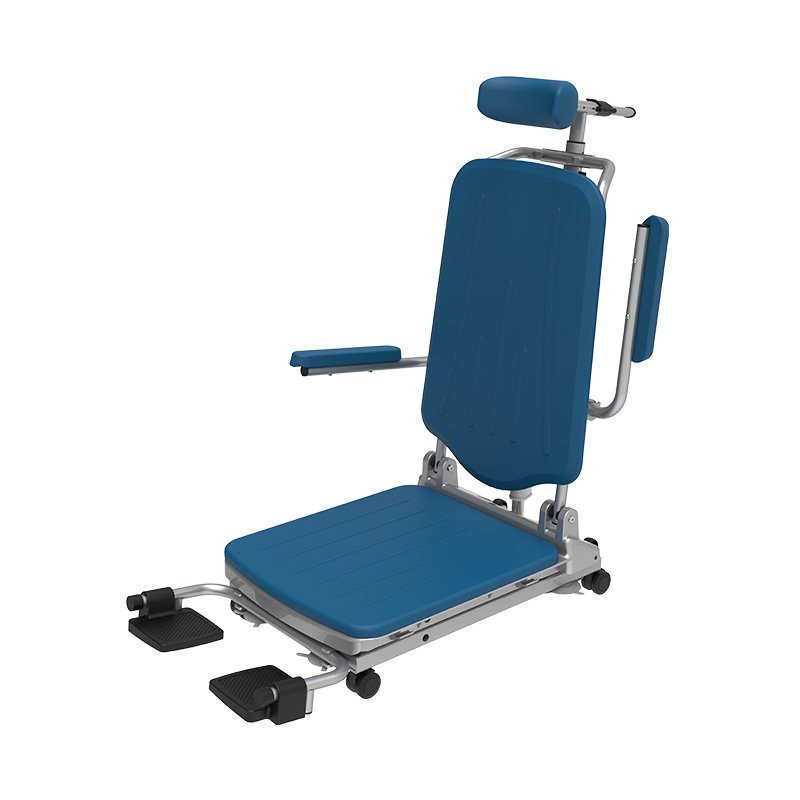

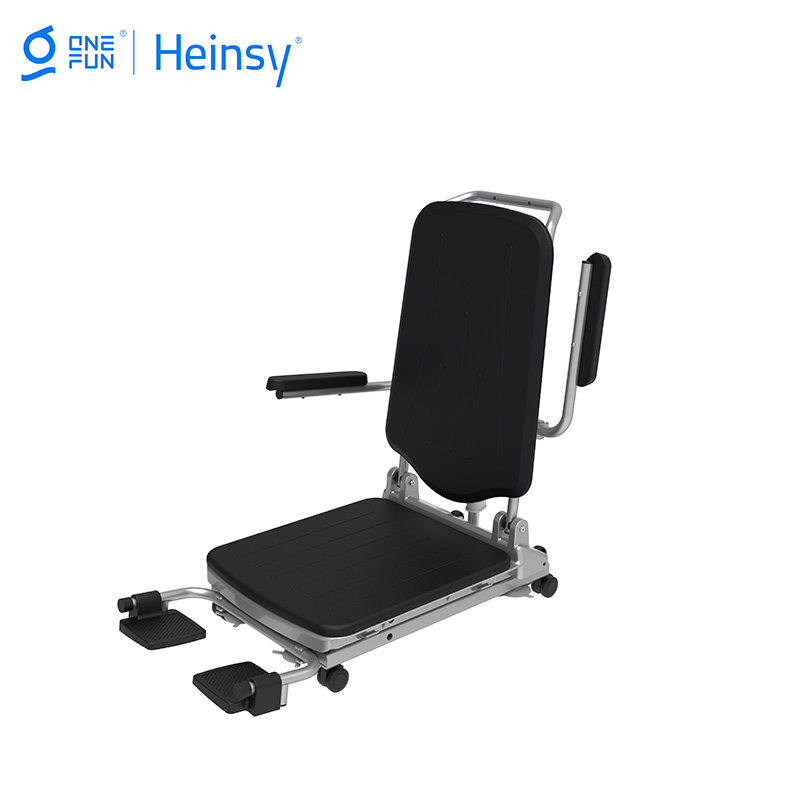

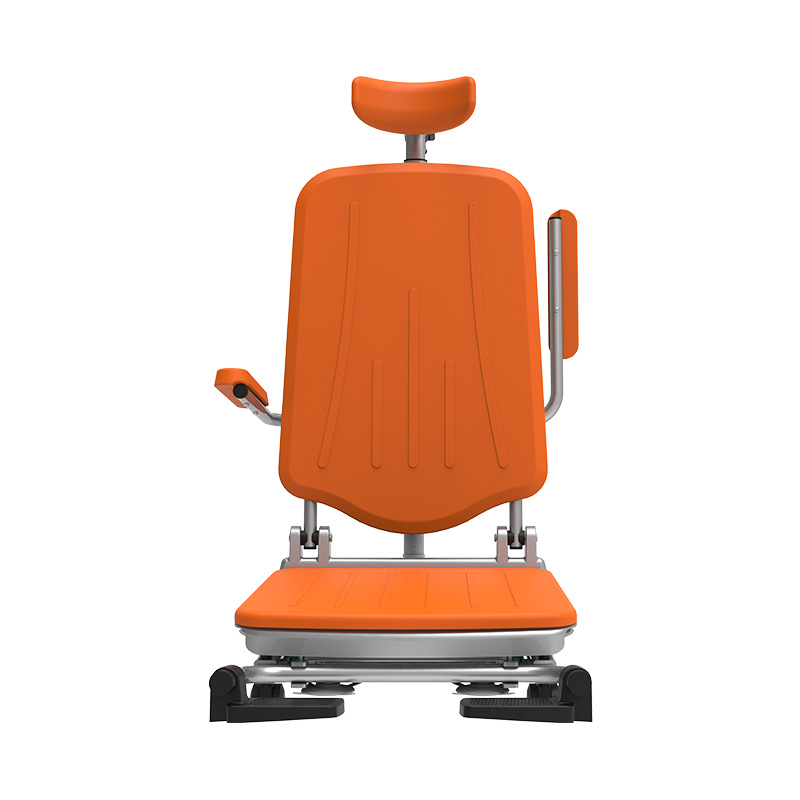

Seat Structure:

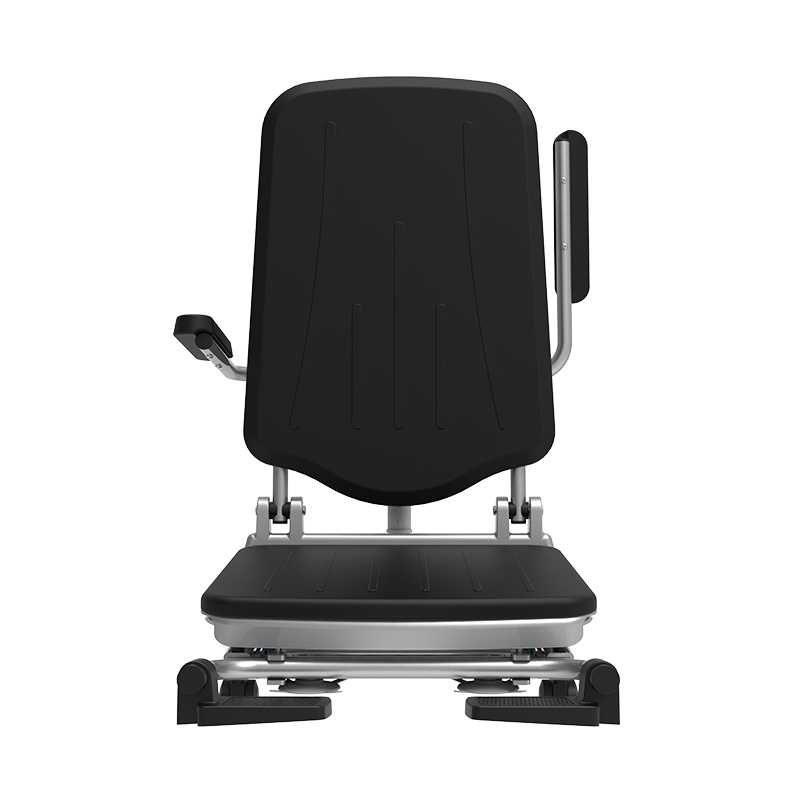

Designed with an ergonomic curved surface, the seat offers 450 mm width, 500 mm depth, and a 680 mm backrest height, fitting the natural contours of adult users.
The seat and backrest are connected via an adjustable linkage structure. With built-in hinges and an adjustment motor, the backrest supports 90°–120° tilt adjustment (30° tilt range), ensuring smooth and stable motion without jamming.

Seat Cushion Assembly:
Equipped with a 20 mm thick waterproof EVA cushion, the seat pad adopts a removable buckle design for easy cleaning.
The upper layer uses a waterproof and wear-resistant fabric, while the inner layer consists of high-elasticity EVA cushioning. The bottom surface features anti-slip patterns that closely fit the seat base, preventing shifting during use.

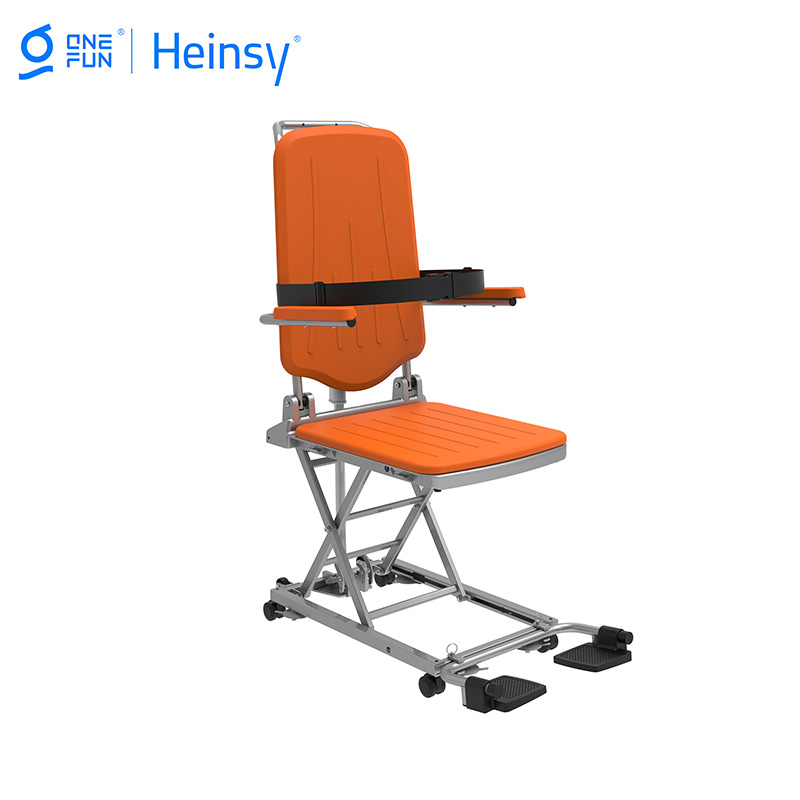

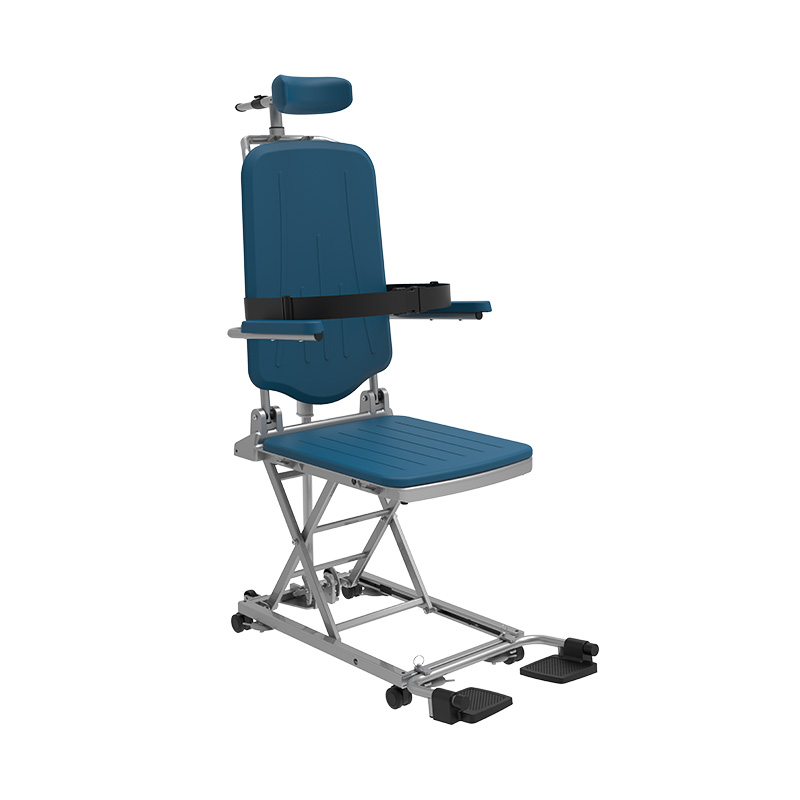

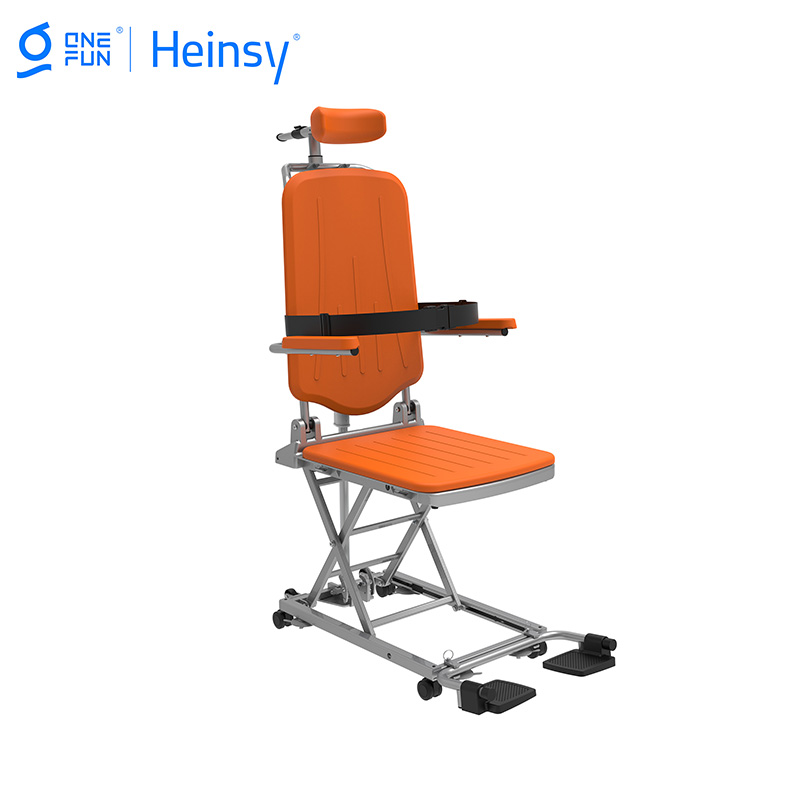

Safety Components:
A full-coverage safety belt is included as standard. The belt’s anchor points are integrated on both sides of the frame using high-strength aluminum-alloy buckles. The adjustable length accommodates users of various body sizes.
The belt is rigidly connected to the seat frame, meeting international load-bearing safety standards to prevent accidental slipping or falling.

3. Electric Adjustment System
(Core Power Unit Enabling Functional Movements)

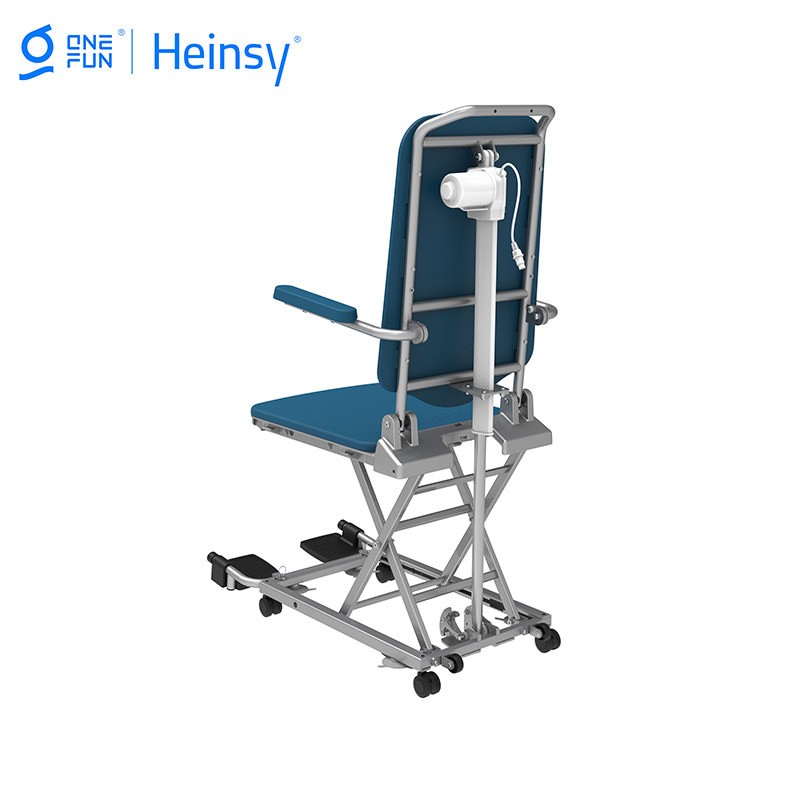

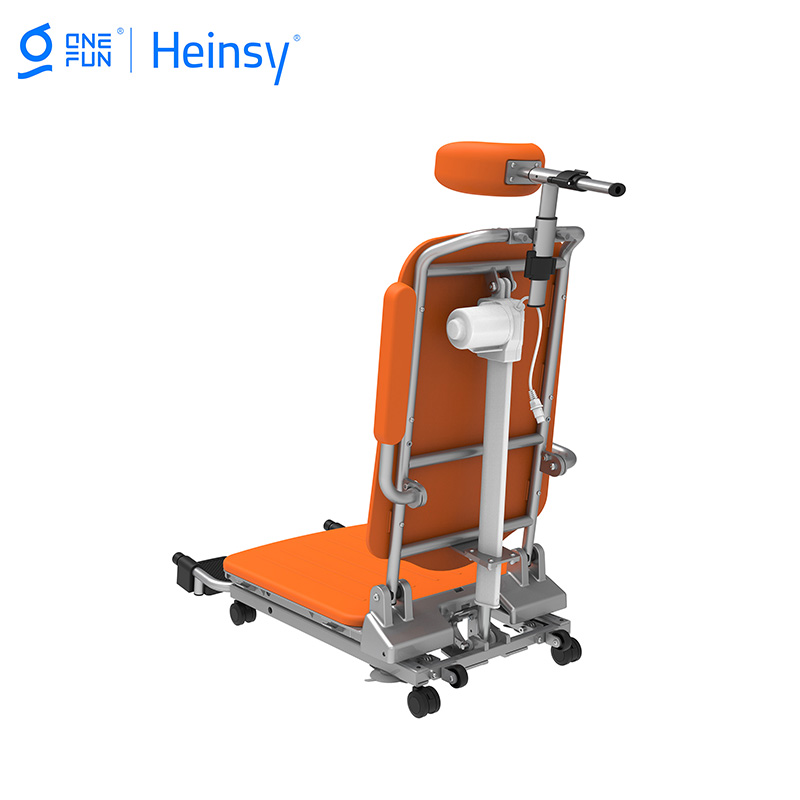

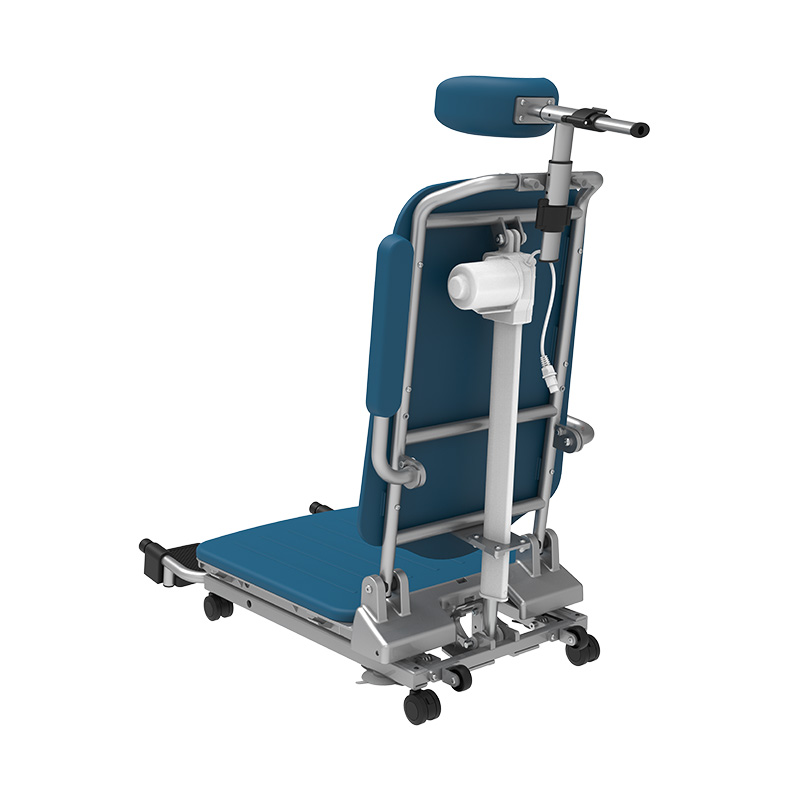

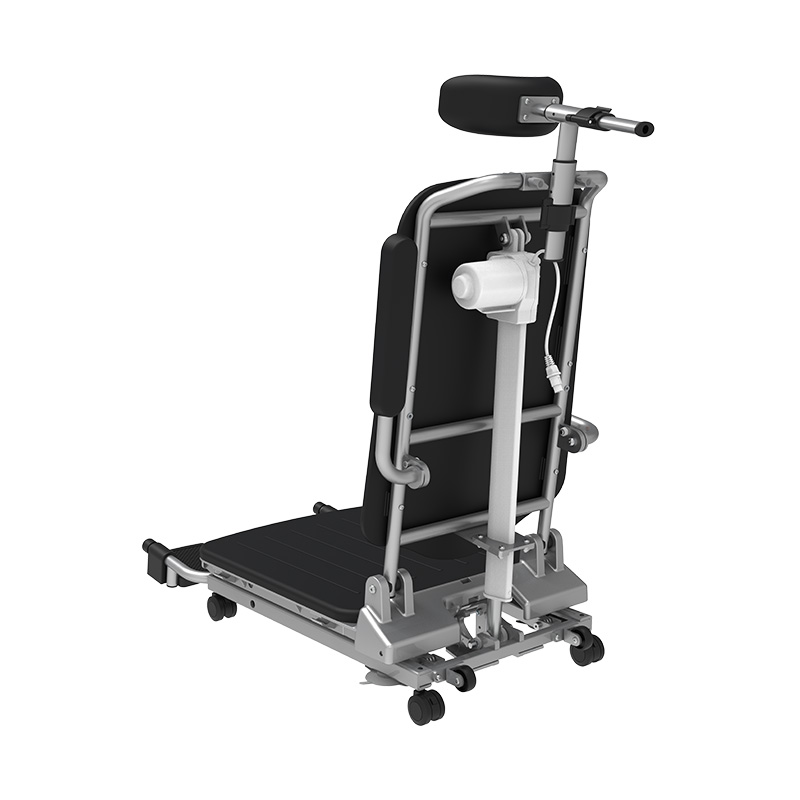

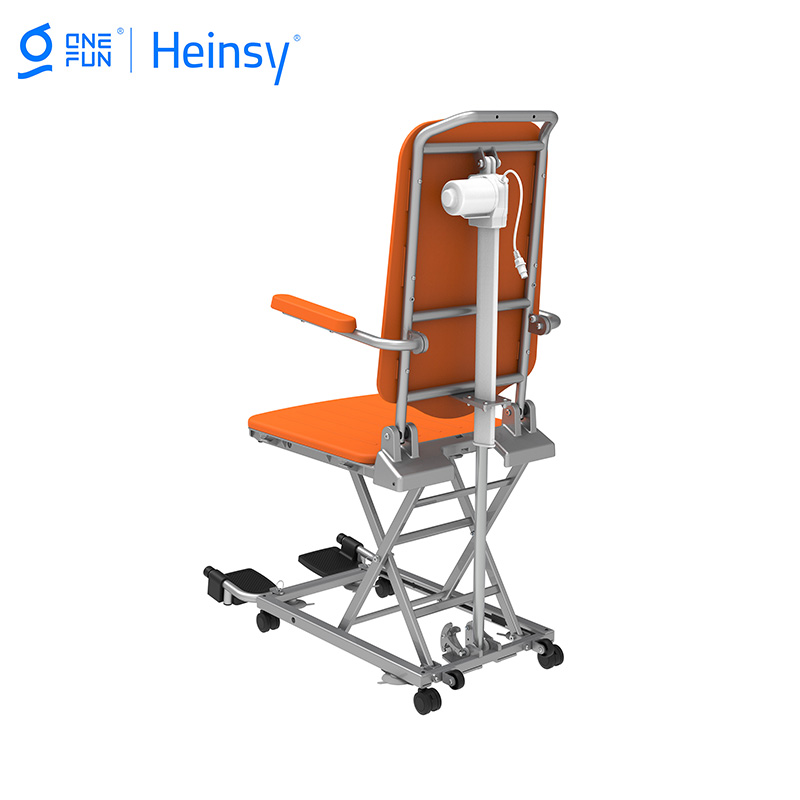

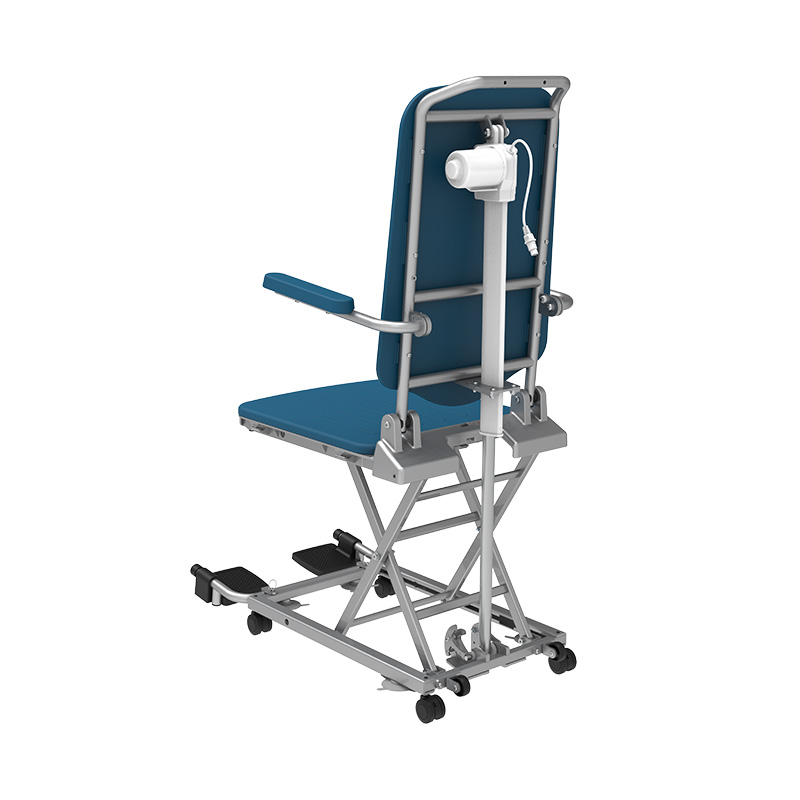

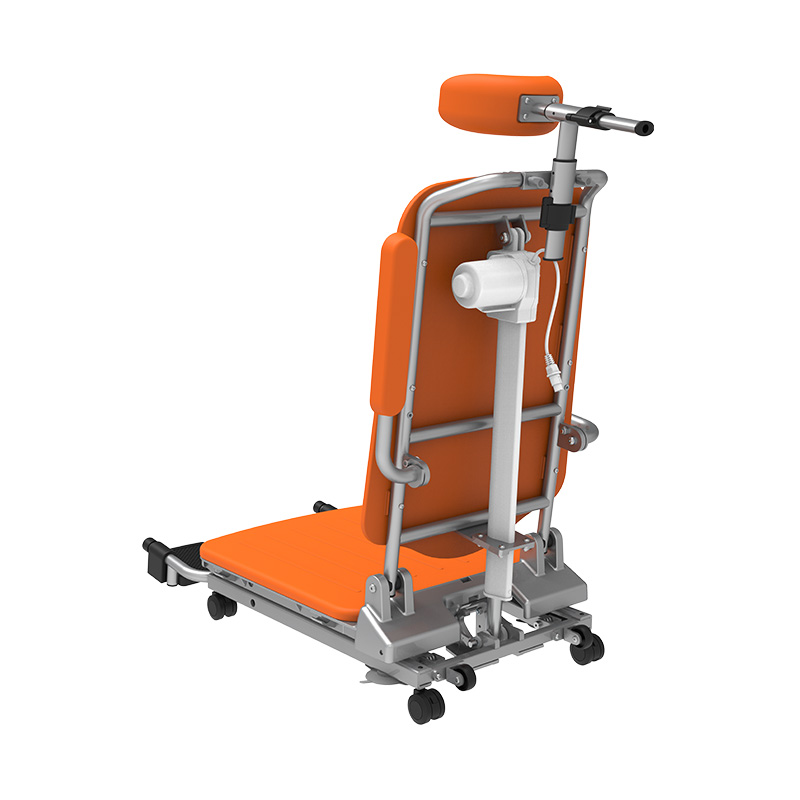

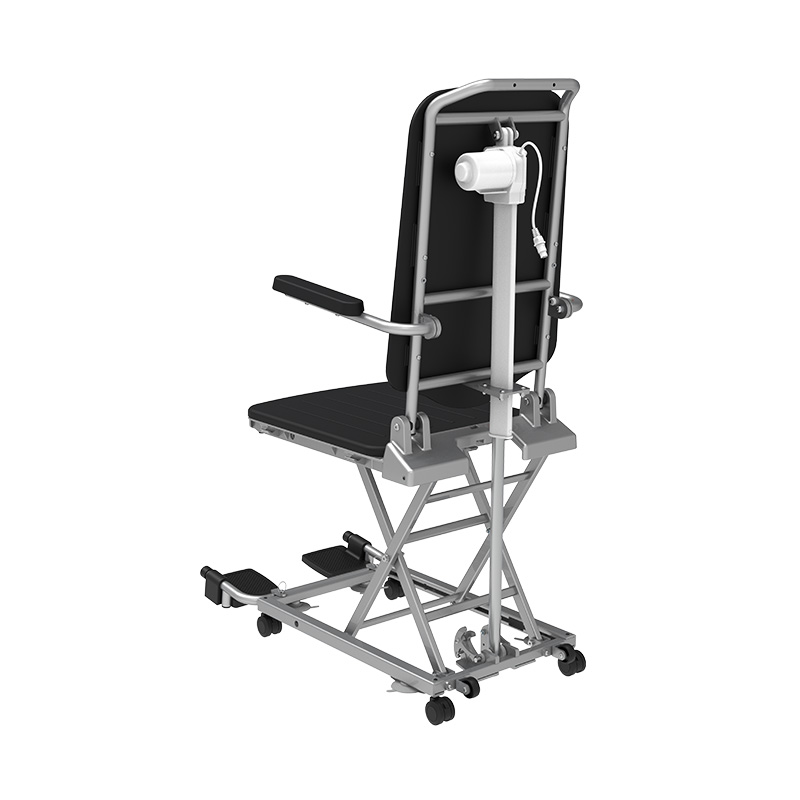

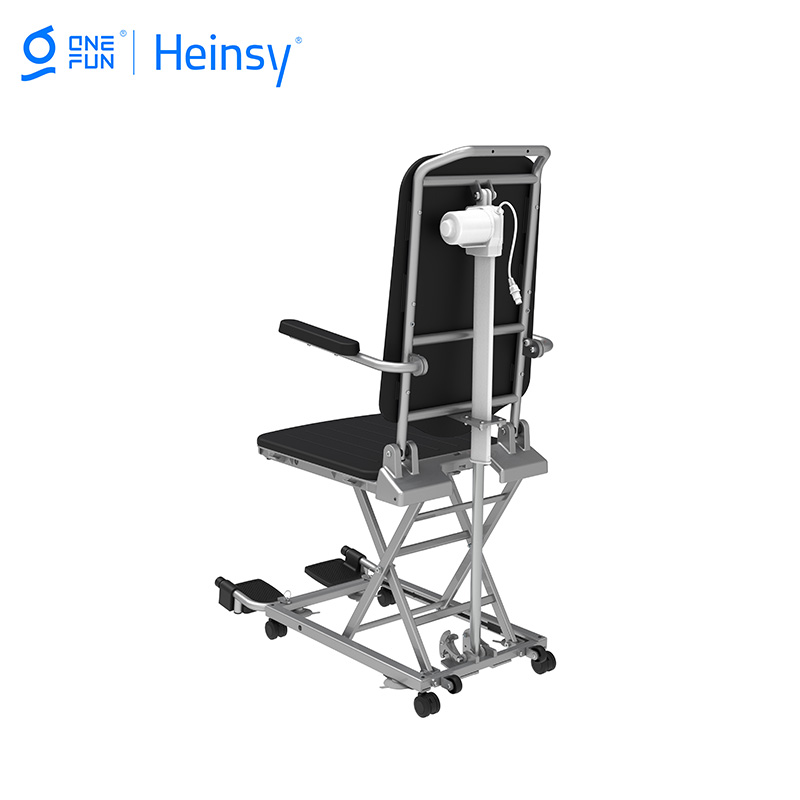

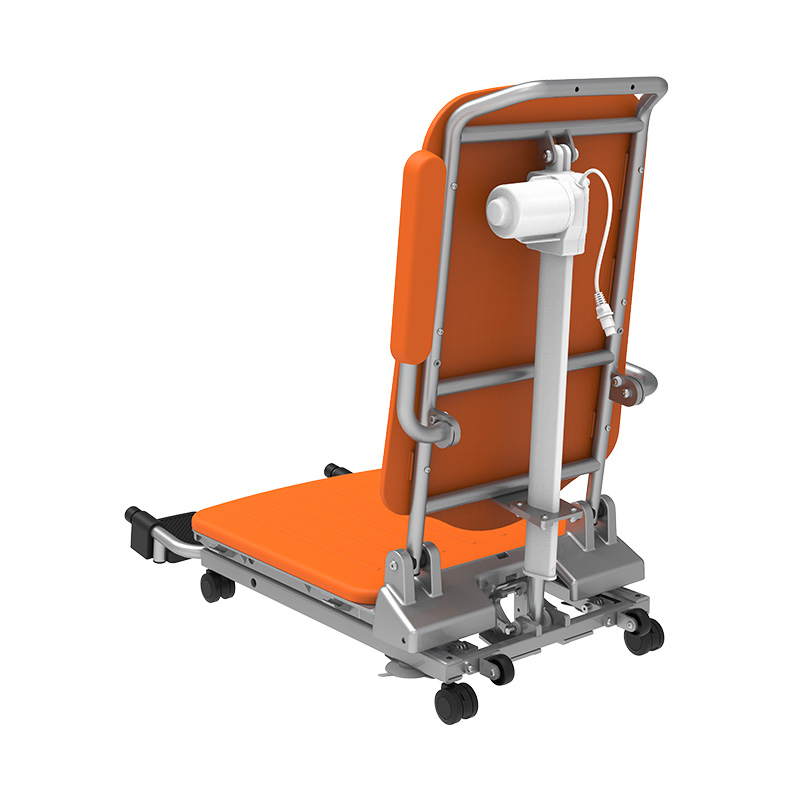

Lifting Drive Mechanism:

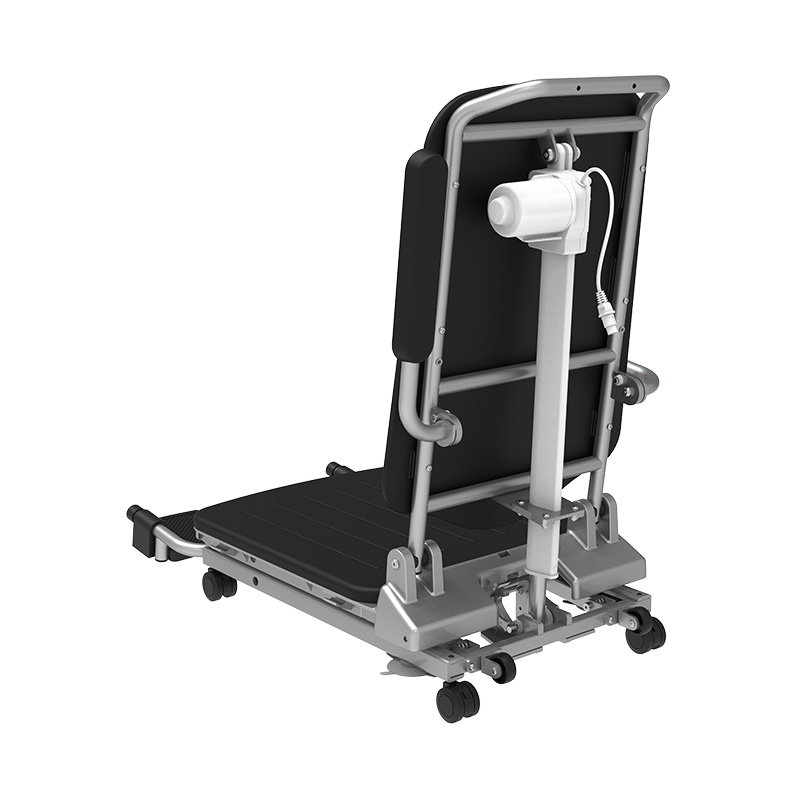

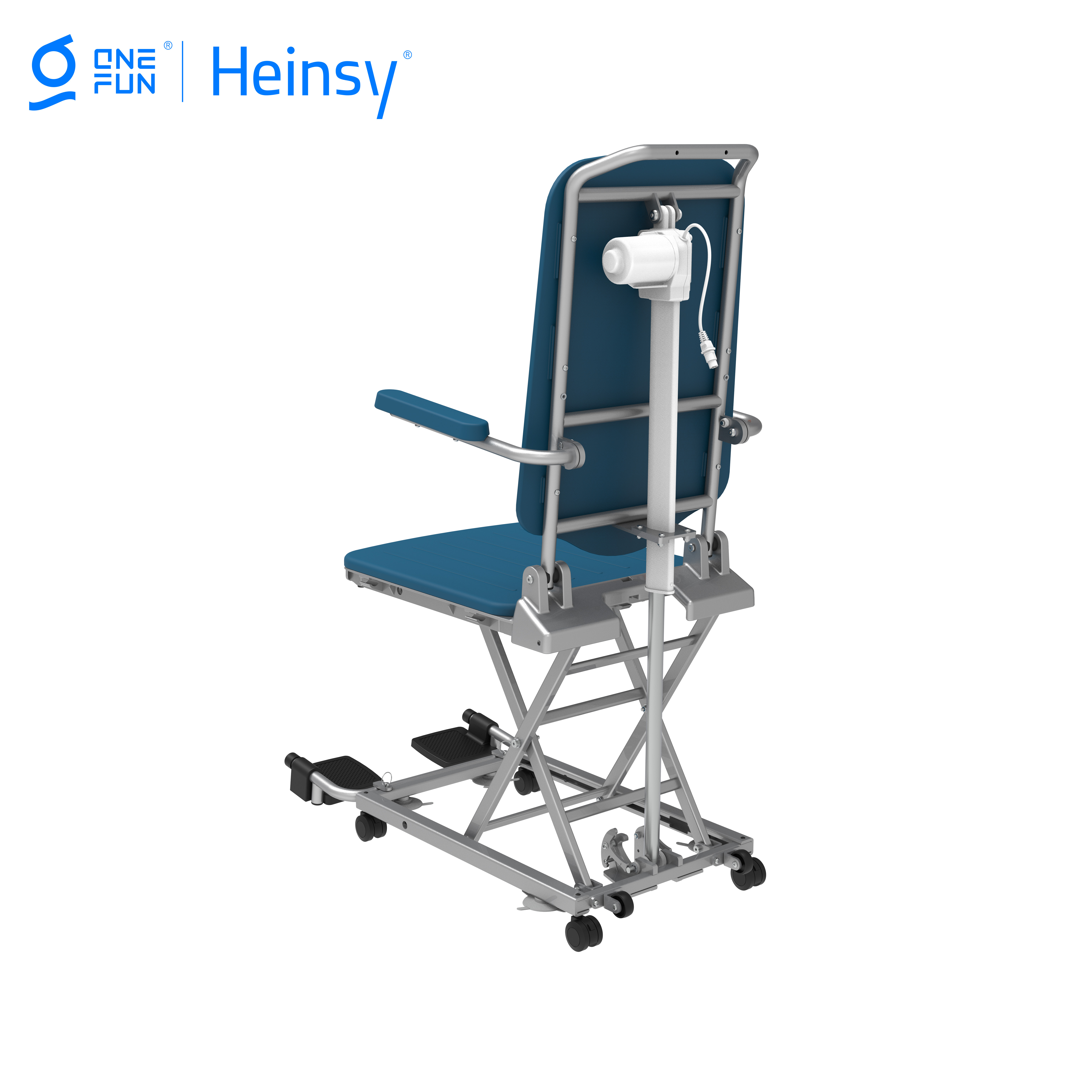

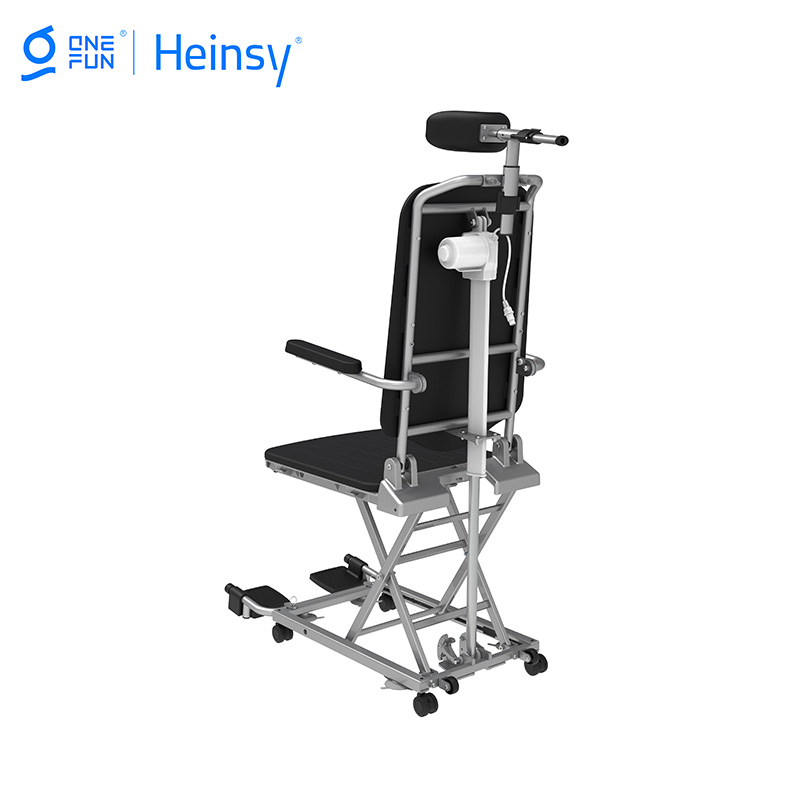

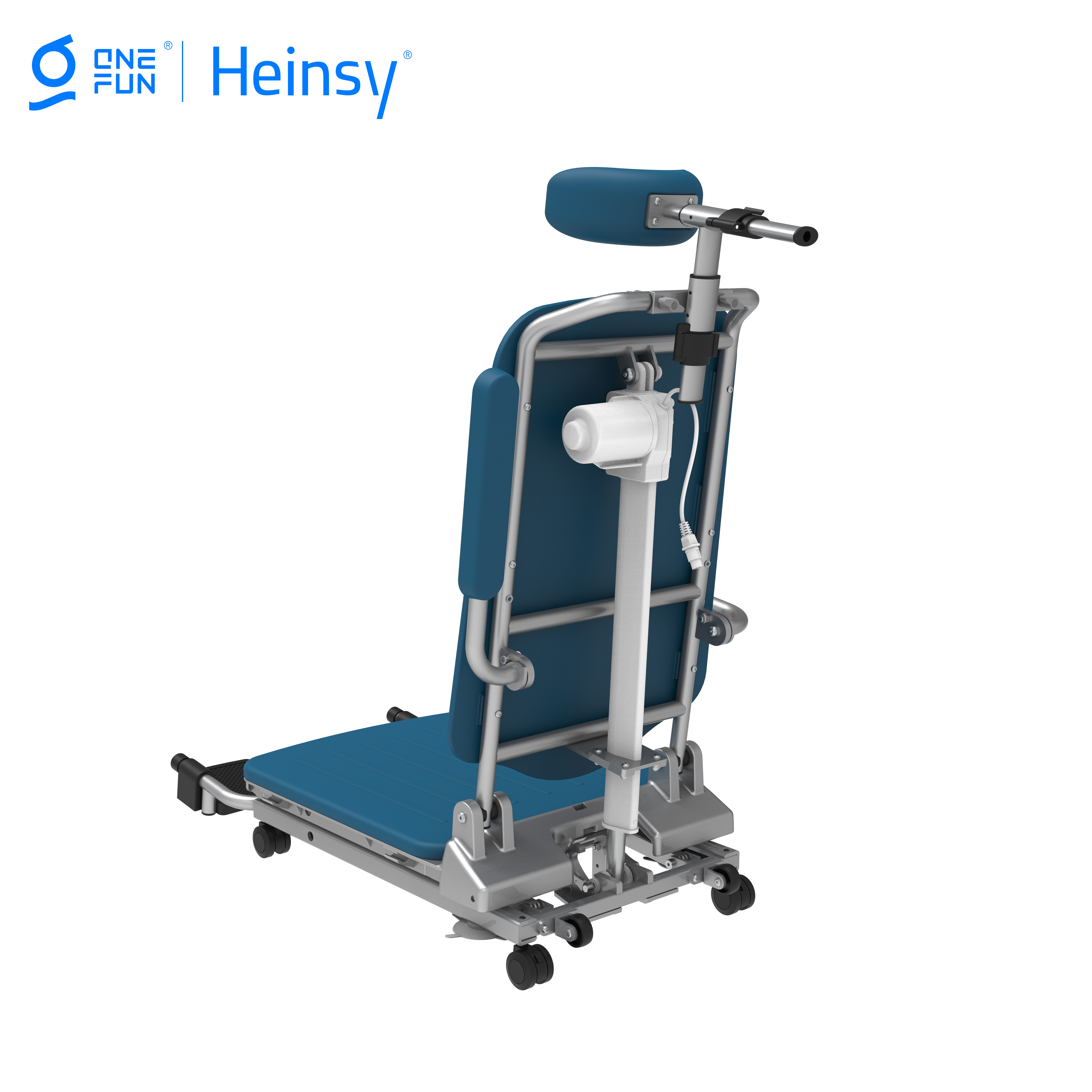

The built-in electric lift motor connects to a screw-drive structure beneath the seat, enabling height adjustment from 113–488 mm (37.5 cm travel).
Operating under 24V DC, and powered by a LIB 24V/2.2Ah lithium battery, the system delivers smooth, consistent lifting speed without noticeable jolting.

Backrest Adjustment Mechanism:
Utilizing a gear-rack transmission structure, the backrest works in conjunction with the lift motor through button-based control, enabling precise tilt adjustment.
The transmission components feature anti-rust surface treatment and protective dust covers to extend service life.

Control System:
An integrated side-mounted control panel includes buttons for height adjustment and backrest reclining. The system connects to the motor and battery via streamlined wiring.
Built-in overload protection and short-circuit protection ensure compliance with 24V DC low-voltage safety standards.

4. Folding and Storage Mechanism
The frame features a foldable construction, using concealed hinges to connect the main frame with the leg-support structure.
When folded, the leg frame retracts toward the main frame, reducing the overall size to 808 × 390 × 253 mm.
A safety locking mechanism is integrated at the folding joints, which automatically locks when fully expanded, preventing accidental folding during use and ensuring structural stability.

Product Advantages:

I. Comprehensive Safety Protection System: Building a Solid Foundation for Secure Use
1. Structural Safety: Dual Assurance of Load Capacity and Stability
The lifter adopts a high-strength, lightweight aluminum alloy frame. The net frame weight is only 15.2 kg, with a total weight of 18.24 kg, achieving excellent balance between portability and durability. It supports a maximum load of 200 kg, suitable for users of various body weights (covering the vast majority of adult users).
Four anti-slip suction cups are installed at the bottom. Combined with the 560 mm overall width and stable structural design, the lifter firmly adheres to various flooring surfaces (tile, wood floor, ceramic, etc.), effectively eliminating risks of sliding or tipping during standing, sitting, or position adjustment, ensuring overall operational safety.
2. Functional Safety: Detail-Oriented Protection to Prevent Risks
A full-coverage safety belt is included as standard to securely stabilize the user—particularly suitable for individuals with limited mobility or weak balance—preventing accidental sliding or falling.
The device operates under a 24V DC safe working voltage, compliant with international low-voltage safety standards. Paired with a LIB 24V/2.2Ah lithium battery, it eliminates high-voltage electric shock hazards and ensures safe, long-term use.

II. Human-Centered Comfort Design: Meeting Diverse User Needs
1. Multi-Dimensional Adjustability: Adapting to Various Postures and Scenarios

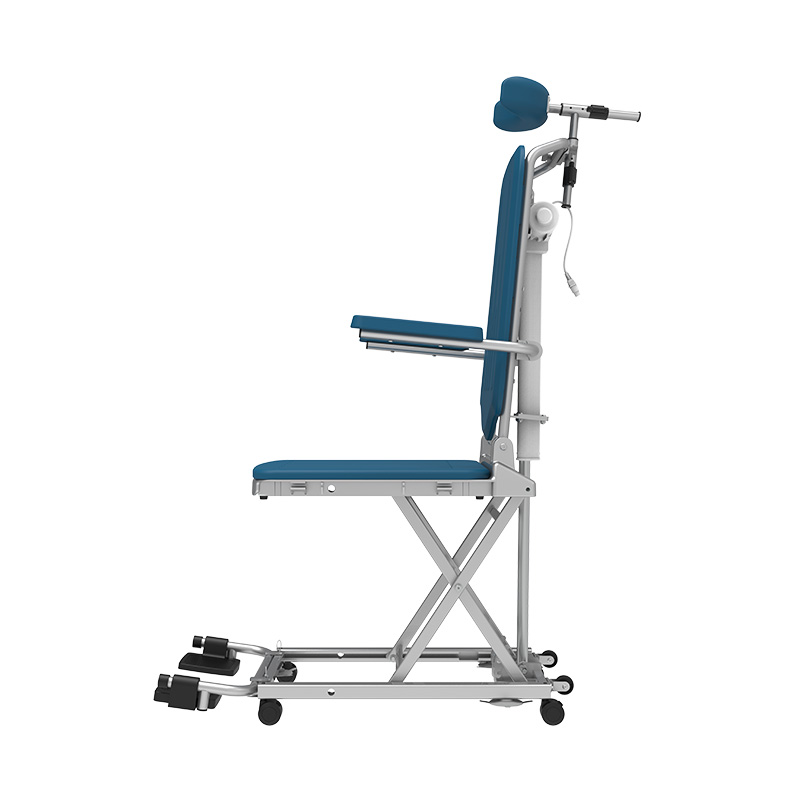

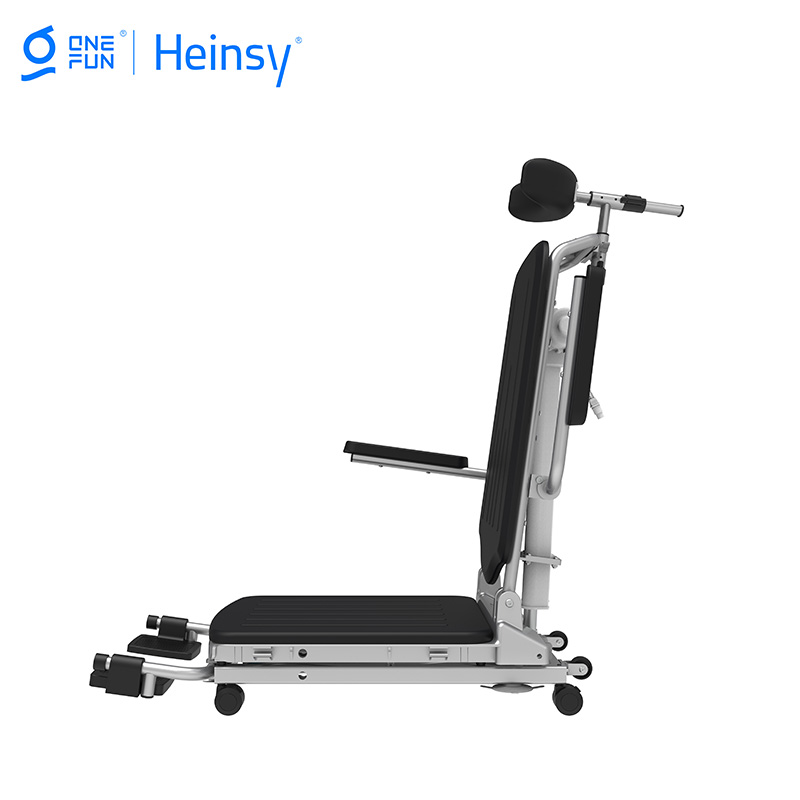

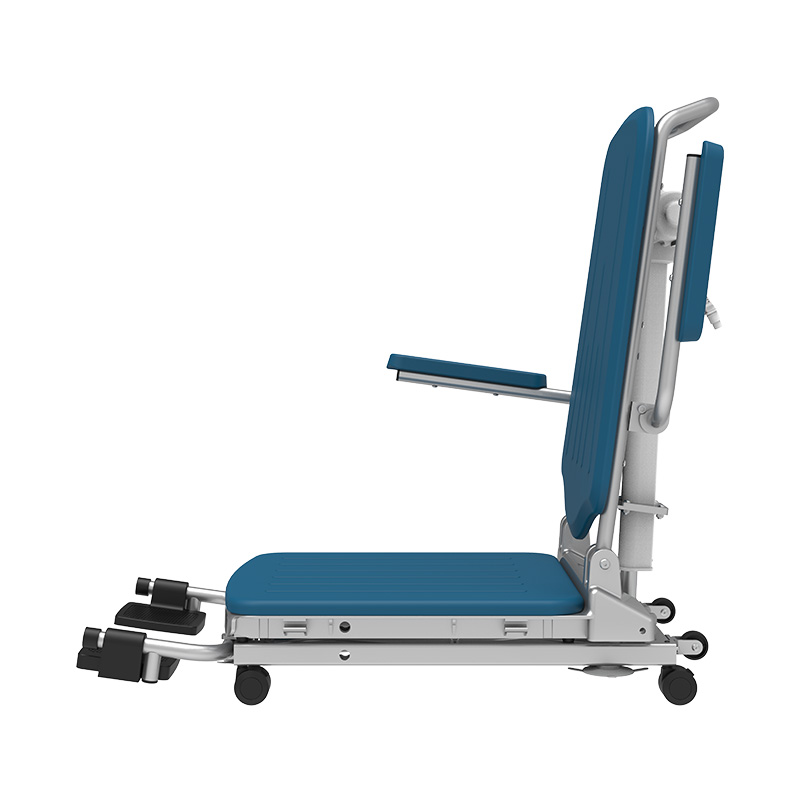

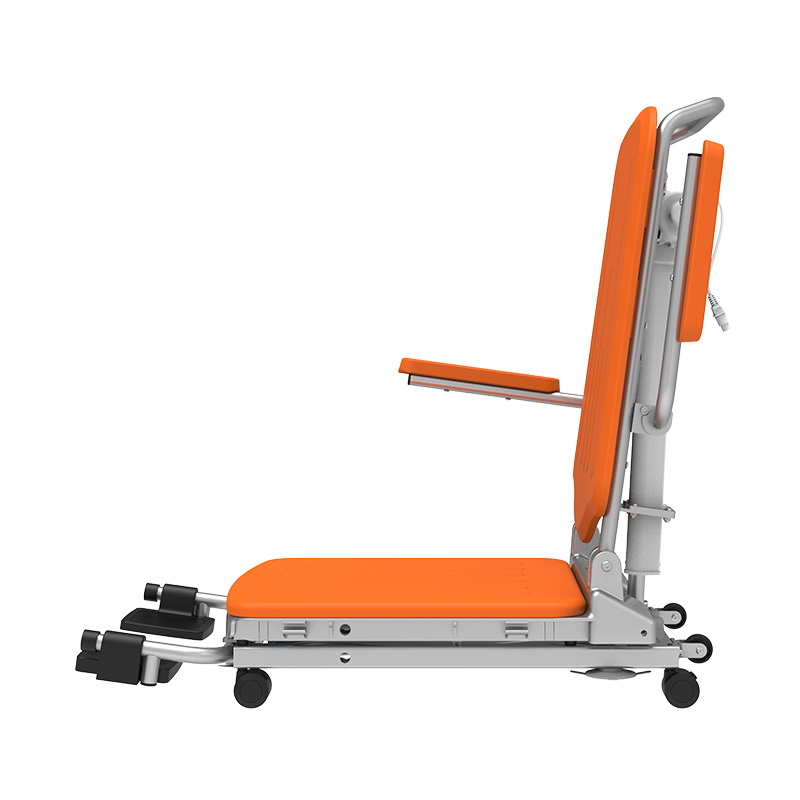

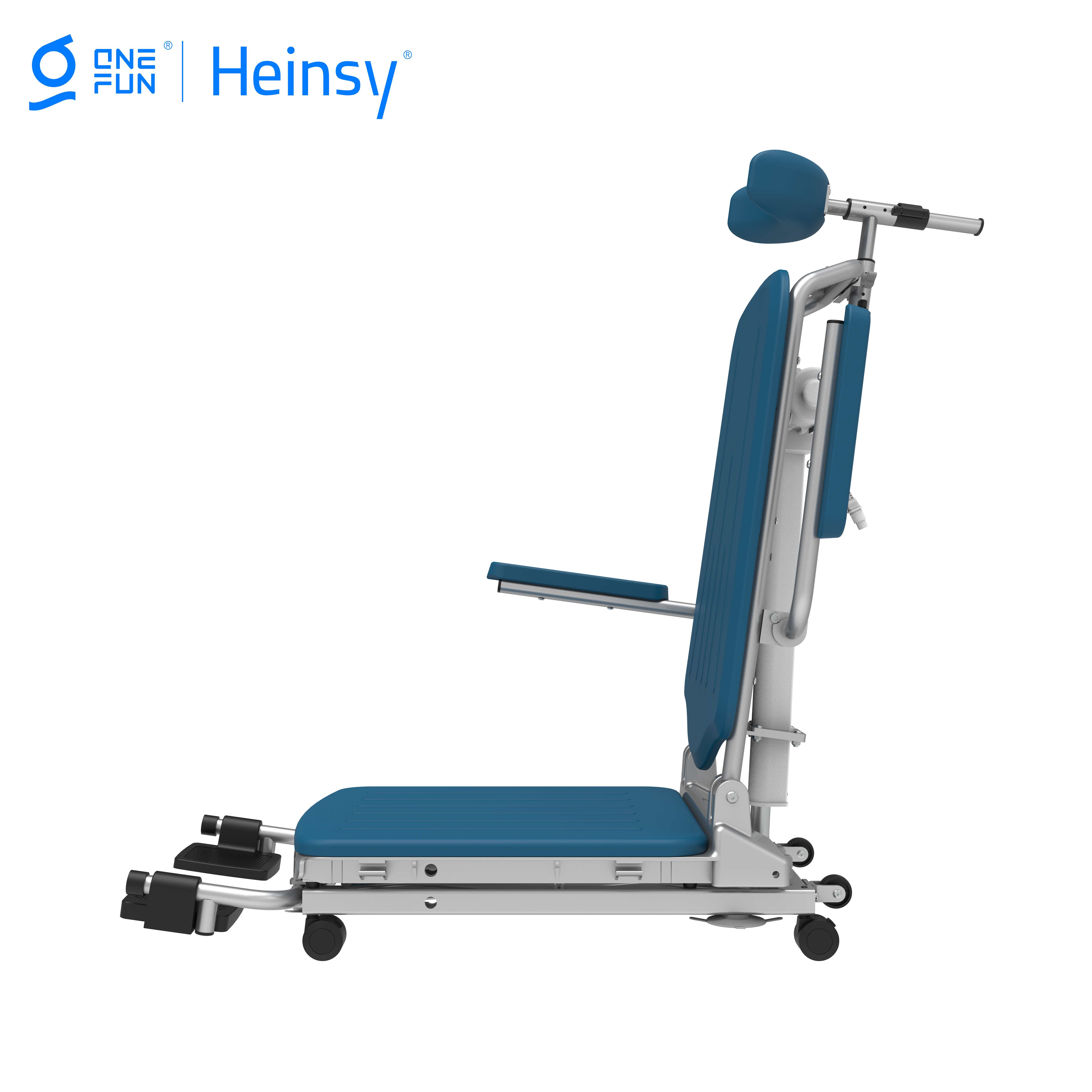

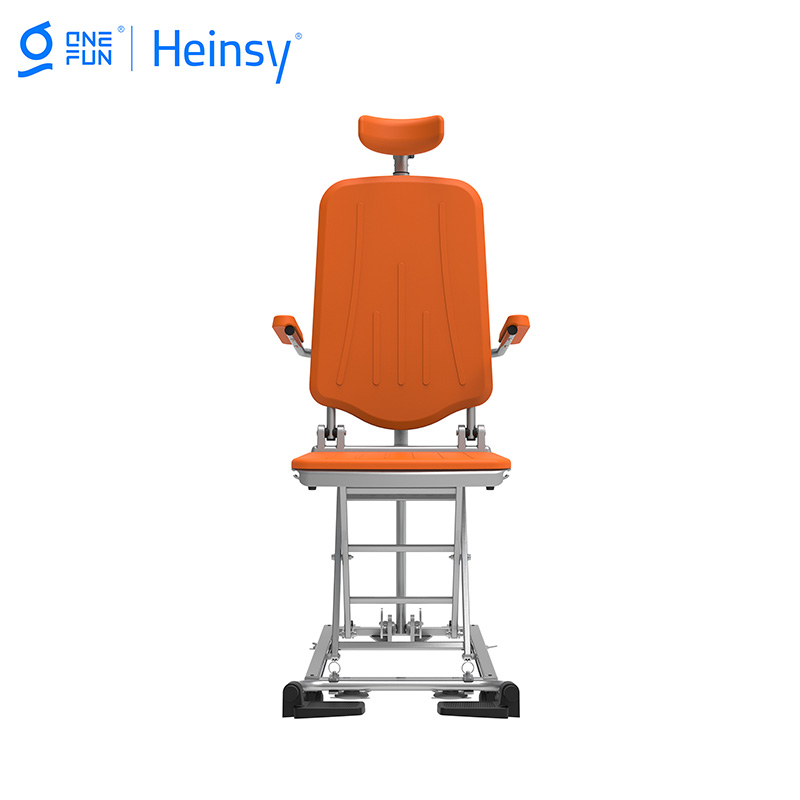

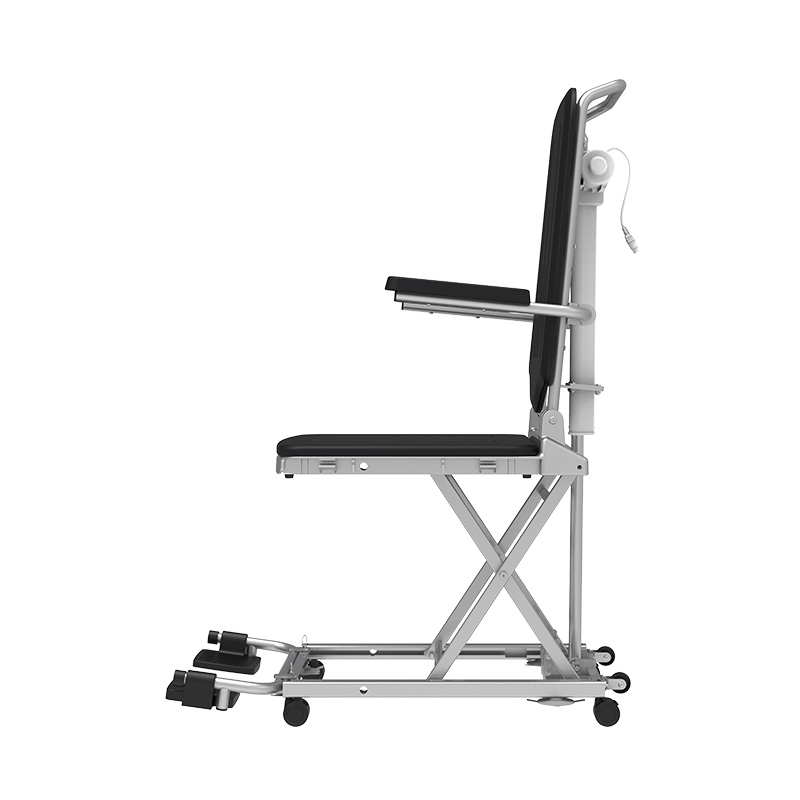

The seat height supports electric adjustment from 113–488 mm (with a stroke of 37.5 cm), enabling precise alignment with beds, sofas, dining tables, and other furniture. This solves “difficulty standing up or sitting down” and allows seamless switching between daily scenarios.
The backrest supports 90°–120° adjustment (30° reclining stroke), allowing effortless switching between sitting and semi-reclining postures. It accommodates needs such as resting, rehabilitation exercises, and dining, reducing spine and muscle pressure and improving long-term comfort.
2. Ergonomics & Material Enhancements: Comfort Meets Practicality
The seat dimensions are ergonomically optimized: 450 mm width, 500 mm depth, and 680 mm backrest height, providing even support that fits the natural contours of most adult users.
A 20 mm thick waterproof EVA cushion offers high-elasticity cushioning along with water- and stain-resistant properties. It effectively reduces sitting pressure, can be removed for direct cleaning, and maintains hygienic conditions—ideal for long-term care environments.

III. Convenience-Focused Design: Easy to Use, Store, and Move
1. Lightweight + Foldable: Space-Saving and Easy to Transport
The overall weight of 18.24 kg, combined with the aluminum alloy frame’s strength, allows a single person to carry the lifter with ease, reducing caregiver strain.
When folded, the compact size of 808 × 390 × 253 mm makes storage effortless—suitable for car trunks, closets, or room corners—ideal for small homes and portable usage.
2. Mobility & Maintenance: Simple and Worry-Free Operation
Equipped with 2-inch swivel casters (optional wheels available), the lifter offers flexible indoor and outdoor mobility, suitable for living rooms, bedrooms, hospital corridors, or sidewalks. Movement is smooth and quiet.
The removable seat cushion and simplified structural design allow quick daily cleaning and deep maintenance without special tools, reducing long-term maintenance costs.

IV. Flexible Customization: Expanding Functional Boundaries
1. Optional Accessories: Tailored to Different User Needs
Supports customization with Nicolis accessories, positioning bolts, and casters. These enable flexible functional expansion:
Casters improve mobility (ideal for facility transfers or home movement)
Positioning bolts secure the seat (suitable for rehabilitation training or users who are bedridden long-term)
Accessories offer high compatibility, allowing adjustments based on the user’s physical condition and care requirements—avoiding a “one-size-fits-all” approach and meeting personalized needs across home, care institutions, and rehabilitation settings.
2. Full-Scenario Adaptability: From Home to Professional Care Environments
Suitable for daily home activities (living room, bedroom, bathroom) and also meets the concentrated care needs of nursing homes and rehabilitation hospitals. It supports short-distance outings such as hospital visits or social activities, providing “one lifter for multiple scenarios” and reducing repeated purchases.
For users with heavy care requirements, customized accessories can provide posture locking, specialized support, and other functions, catering to individuals such as post-operative patients, severely disabled users, and fully dependent elderly patients.

V. Global Compatibility: Designed for Worldwide Use
The charger supports 100–240VAC wide-range voltage (1.5A, 50/60Hz), compatible with power standards in most countries/regions without requiring an additional transformer. This facilitates cross-border sales, overseas institutional procurement, and international travel.
Standardized product specifications align with internationally recognized design norms. Components are easy to source and replace, ensuring barrier-free global use—especially suitable for international rehabilitation institutions and multinational senior care communities.

Usage and Maintenance:

I. Safety Instructions (Must Read to Avoid Risks)

1. Applicable Scope & Prohibitions

• Designed for users weighing ≤200 kg. Overloading is strictly prohibited.
• Compatible with height adjustment needs ranging from 113–488 mm. Do not forcibly pull, stretch, or press the seat.
• Do not use in wet or waterlogged environments(e.g., shower areas) for extended periods to avoid electrical short circuits.
• Children and persons with cognitive impairment must use the product under close supervisionto prevent misuse.

2. Pre-Use Inspection Checklist

• Ensure all four anti-slip suction cupsat the base are fully adhered to the floor, without looseness or displacement.
• Check that the safety beltis free from damage, the buckle locks properly, and the seat cushion clips are firmly secured.
• Check the battery indicator(Green: full / Yellow: low / Red: recharge required); avoid using the device under low power.
• Ensure the folding lock mechanismis fully engaged, and all movable parts operate smoothly with no unusual noise.

3. Operating Safety Notes

• When adjusting seat height or backrest angle, ensure the surrounding area is clear (keep at least 30 cmaway from walls or furniture) to avoid pinching hazards.
• After the user sits down, secure the safety belt immediately. During adjustments, maintain stable posture—do not sway or stand up.
• Use only the original charger(Input: 100–240VAC 1.5A 50/60Hz). Do not use third-party chargers.
• When moving the chair (for models with optional casters), first lower the seat to the minimum heightand set the backrest to 90° to prevent tipping due to a high center of gravity.

II. Daily Operation Guide (Detailed by Use Scenario)

1. Basic Operation Procedure

2. Charging Procedure

• Turn off the chair’s power switch (if equipped). Insert the charger plug into the side charging port and ensure the waterproof connector is fully engaged.
• Connect the other end to a household outlet. Indicator light: Red = charging, Green = fully charged(approx. 4 hours).
• After charging, unplug the power outlet first, then disconnect the chair-side connector to prevent short circuits.
• After each use, it is recommended to charge promptly. For long-term non-use (>15 days), fully charge before storage and recharge every 30 days.

III. Regular Maintenance Guide (Extend Product Lifespan)

1. Routine Cleaning (1–2 times per week)

• Seat Cushion:Remove and wipe with a damp cloth (neutral detergent acceptable). Avoid alcohol or bleach. Air-dry completely before reinstalling.
• Frame & Housing:Wipe with a dry cloth. For stains, use a small amount of water. Avoid aluminum frame oxidation.
• Transmission Components:Wipe the screw rod and gear rack with a dry cloth to remove dust and prevent blockage.

2. Monthly Inspection (Once per month)

• Structural Parts:Ensure frame bolts are tight, folding hinges and clips are not damaged, and suction cups are free from aging or cracking.
• Functional Parts:Test lifting and reclining functions for smoothness, no abnormal sound, and proper limit protection.
• Safety Components:Ensure safety belt and buckle are intact and secure; protective covers are firmly installed.
• Electrical Components:Check cables for damage, waterproof seals for integrity, and battery for swelling or leakage.

3. Special Maintenance (Every 6 months)

• Transmission System:Apply a small amount of lithium grease to the screw rod and gear rack (avoid over-lubrication to reduce dust accumulation).
• Suction Cup Care:Clean suction cups with water; replace if adhesion weakens.
• Battery Maintenance:Perform a full cycle (charge fully → use until low-battery alert → recharge fully) to maintain lifespan.
• Caster Maintenance(optional models): Check wheel rotation smoothness and tighten bolts. Apply oil if rotation is obstructed.

IV. Common Troubleshooting (Quick Fixes)

V. Long-Term Storage & After-Sales Support

1. Long-Term Storage

• Store in a dry, ventilatedarea at 0–40°C, away from sunlight, moisture, and mold.
• Cover with a dustproof cover after folding to prevent dust from entering transmission or electrical parts.
• Fully charge before storage and recharge every 30 daysto avoid battery damage from deep discharge.

2. After-Sales Support

• Within the warranty period (per manufacturer policy), non-human quality issues qualify for free repair or part replacement.
• When replacing major components (motor, battery, suction cups, etc.), use only original parts. Modification is prohibited.
• After-sales contact: [Manufacturer Phone / Website / QR Code](replace as needed).

Precautions:
Overloading is Prohibited: The maximum load capacity of the device is 135 kg. Strictly adhere to this limit during use. Overloading is prohibited to prevent equipment damage or safety accidents.
Proper Operation: Operators must be familiar with the device's operating methods and strictly follow the user manual. Untrained personnel are not allowed to operate the device to avoid accidents caused by improper use.
Environmental Requirements: Avoid using the device on wet, uneven, or obstructed surfaces to prevent slipping, collisions, or jamming. Ensure a safe operating environment.
Regular Inspection: Conduct comprehensive inspections and maintenance periodically. If components are damaged or malfunctioning, contact professionals for repair or replacement immediately. Do not use faulty equipment.
Battery Safety: Use only the manufacturer-specified battery model (2×12V 1.3AH lead-acid battery) for replacements. The use of non-compliant batteries is prohibited. During charging, keep the battery away from fire sources and avoid overcharging to prevent safety hazards.
Safety Protection: During use or storage, keep children away from the device to prevent climbing or playing, which could lead to accidents.
