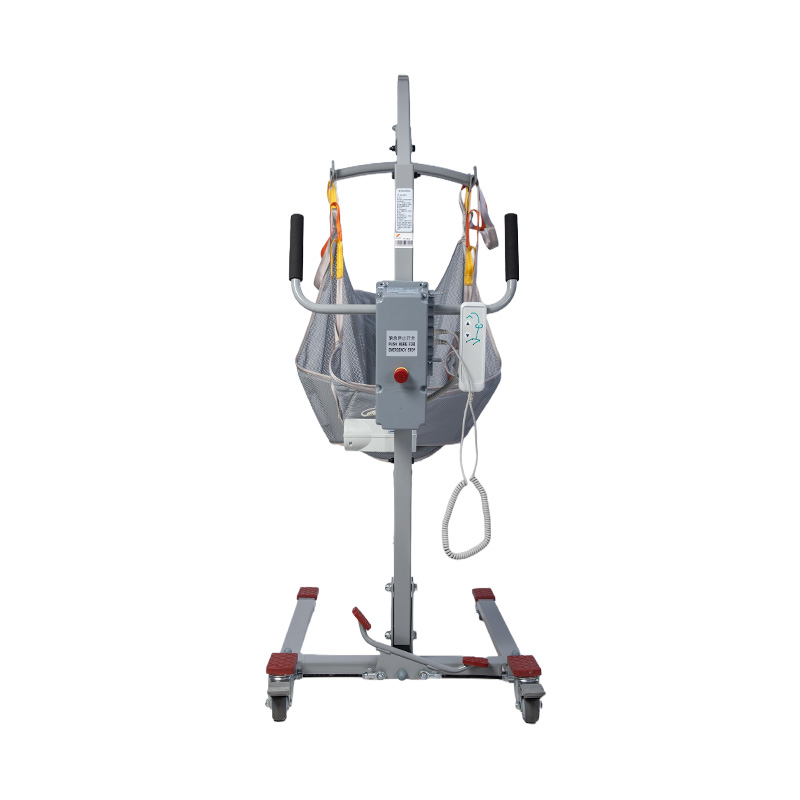

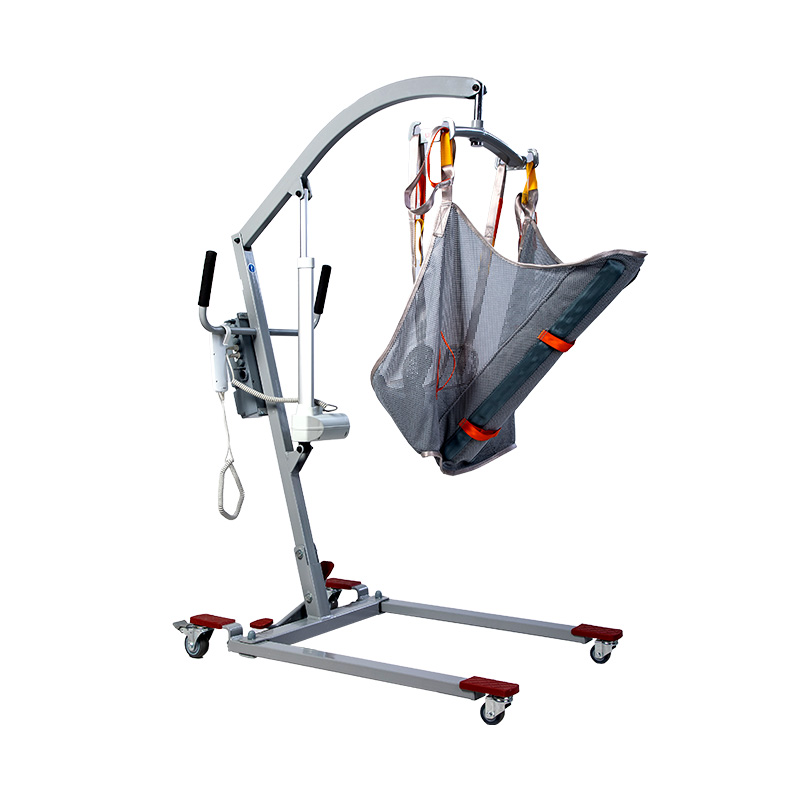

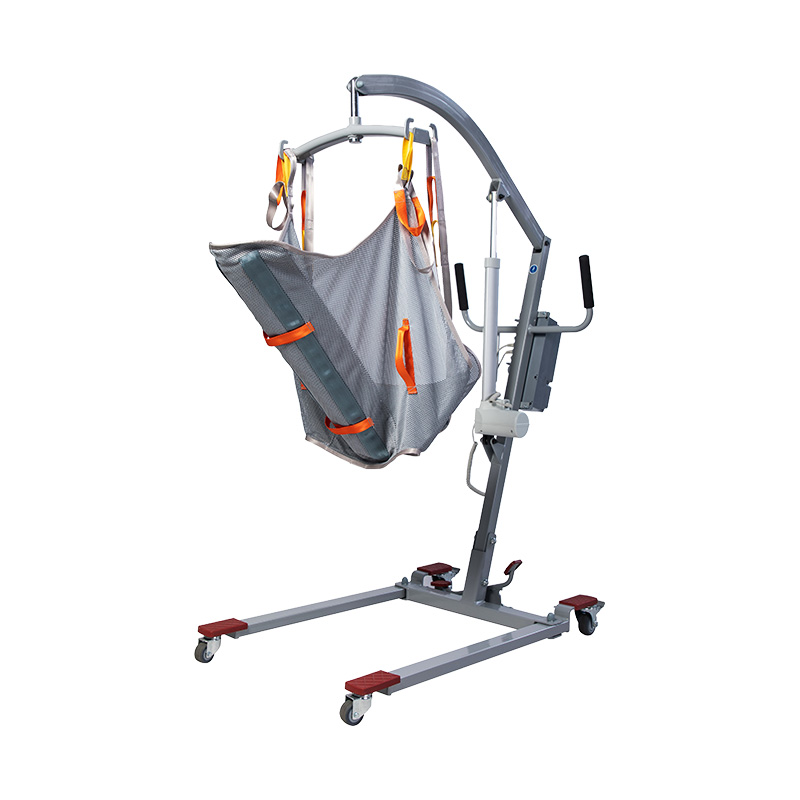

HES-L605 Carbon Steel Electric Angle Adjustable Patient Lifter

Developed by Suzhou Heinsy Medical Equipment Co., Ltd., the HES-105B patient lifter is an assisted transfer device designed for individuals with mobility challenges. It features a low-carbon steel frame combined with practical structural design and performance parameters, making it suitable for use in homes, medical institutions, rehabilitation centers, and other settings. It enables safe and smooth transfers for users with limited mobility while effectively reducing the physical strain on caregivers.

Features:
1. Transports patients by lifting, with adjustable height functionality.
2. Facilitates easy pants removal and changing during patient care.
3. Optional seat cushion with simple disassembly and assembly.
4. Capable of lifting and transferring patients from confined spaces (e.g., chairs, wheelchairs, hospital beds, cars, toilets).

Recommended Users:

Individuals with complete paralysis.
This electric patient hoist is designed for transferring paralyzed patients. It features a multi-position adjustable mesh breathable sling that enables transfers in sitting, semi-lying, and fully lying positions. The split-base design facilitates transfers to wheelchairs, toilets, sofas, beds, and other surfaces. Equipped with internationally renowned Moteck motors, it operates quietly and delivers powerful performance. The motor supports both plug-in and battery power modes. In battery mode, it supports 10-15 lift cycles. The brake-equipped rear wheels ensure the device remains stationary when needed.

Application Scenarios
Home Settings: For families with members experiencing mobility challenges, the HES-105B patient lifter serves as an ideal care aid. Its compact dimensions (minimum size: 745±10 mm) allow easy maneuverability in bedrooms, living rooms, and bathrooms. It simplifies transfers between beds, wheelchairs, sofas, and bathrooms, significantly reducing the caregiving burden on family members and making home care safer and more convenient.

Medical Institutions: In hospital wards, rehabilitation departments, and geriatric units, this lifter meets daily patient transfer needs. For example, it assists postoperative or fracture recovery patients in moving between hospital beds and examination/treatment tables, preventing secondary injuries during transfers while improving healthcare工 efficiency and ensuring orderly medical care.

Elderly Care Facilities: Nursing homes accommodate a large number of elderly individuals with mobility issues. With a maximum load capacity of 135 kg, the HES-105B accommodates most elderly users. Its 800 mm base expansion width ensures stability, making it suitable for transfers in rooms and activity areas within nursing homes, enhancing the quality of care.

Rehabilitation Centers: Patients undergoing rehabilitation often need to move between different training equipment. With a maximum lifting range of 1740±10 mm, this lifter meets various height requirements and ensures smooth, comfortable transfers, supporting the effective progression of rehabilitation training.

Target Users
Elderly with Mobility Challenges: Age-related decline in physical function can hinder independent movement. The HES-105B assists in daily transfers, improving autonomy and comfort for the elderly.

Postoperative Rehabilitation Patients: Those recovering from surgeries (e.g., orthopedic or neurological) who require assistance with position changes can benefit from the lifter’s safe and stable transfers, avoiding disruptions to recovery.

Individuals with Disabilities: People with limb disabilities or limited mobility due to accidents can use the lifter for seamless transfers across scenarios, enhancing their quality of life and confidence.

Patients with Severe Illnesses: Those weakened by conditions such as advanced cancer or severe cardiopulmonary diseases can rely on the lifter to reduce discomfort and ease caregiving efforts.

Product Structure:
The patient lifter primarily consists of a low-carbon steel frame, base, lifting mechanism, push rod, battery, control system, and mobility wheels. The low-carbon steel frame serves as the core supporting structure, determining the overall stability of the device. The base can be expanded to a certain extent, enhancing stability during use by adjusting its width. The lifting mechanism, driven by the push rod, performs the lifting action to facilitate user transfers. The battery provides power for device operation, while the control system manages all functional operations. Mobility wheels are installed at the bottom of the base for easy movement across different areas.

Usage and Maintenance:
Usage Instructions
Pre-Use Inspection: Before operation, carefully check all components of the device, including the frame connections, push rod functionality, battery charge level, and mobility wheel flexibility, to ensure the device is in proper working condition.
Device Adjustment: Adjust the base to the appropriate expansion width (800 mm) based on the usage scenario and user needs, ensuring stable placement.
User Positioning: Assist the user in properly sitting or lying on the device's load-bearing components, ensuring their stability. Use safety belts or other auxiliary devices if necessary.
Transfer Operation: Activate the push rod via the control system to smoothly lift the user to the desired height. Gently push the device to transfer the user to the target location, maintaining stability and avoiding sudden movements.
Completion: After safely placing the user at the target location, lower the device, release any restraints, tidy up the equipment, and turn off the power.

Maintenance Guidelines:
Regular Cleaning: Wipe the device surface regularly with a clean, damp cloth, including the low-carbon steel frame, load-bearing components, and control system, to remove dust and stains. Avoid corrosive cleaners to prevent surface damage.
Battery Maintenance: Charge the battery periodically as per the manual using the provided charger. For long-term storage, fully charge the battery and recharge it regularly to extend its lifespan. Check battery connections for looseness or aging.
Component Inspection and Lubrication: Regularly inspect all connections for tightness and tighten if loose. Apply lubricant to moving parts such as push rods and wheels to ensure smooth operation and normal device functionality.
Storage Specifications: When not in use, store the device in a dry, well-ventilated area away from direct sunlight, moisture, and corrosive environments. For packaging, adhere to the specified dimensions (1190×640×340 mm) to facilitate transportation and long-term storage.

Precautions:
Overloading is Prohibited: The maximum load capacity of the device is 135 kg. Strictly adhere to this limit during use. Overloading is prohibited to prevent equipment damage or safety accidents.
Proper Operation: Operators must be familiar with the device's operating methods and strictly follow the user manual. Untrained personnel are not allowed to operate the device to avoid accidents caused by improper use.
Environmental Requirements: Avoid using the device on wet, uneven, or obstructed surfaces to prevent slipping, collisions, or jamming. Ensure a safe operating environment.
Regular Inspection: Conduct comprehensive inspections and maintenance periodically. If components are damaged or malfunctioning, contact professionals for repair or replacement immediately. Do not use faulty equipment.
Battery Safety: Use only the manufacturer-specified battery model (2×12V 1.3AH lead-acid battery) for replacements. The use of non-compliant batteries is prohibited. During charging, keep the battery away from fire sources and avoid overcharging to prevent safety hazards.
Safety Protection: During use or storage, keep children away from the device to prevent climbing or playing, which could lead to accidents.
