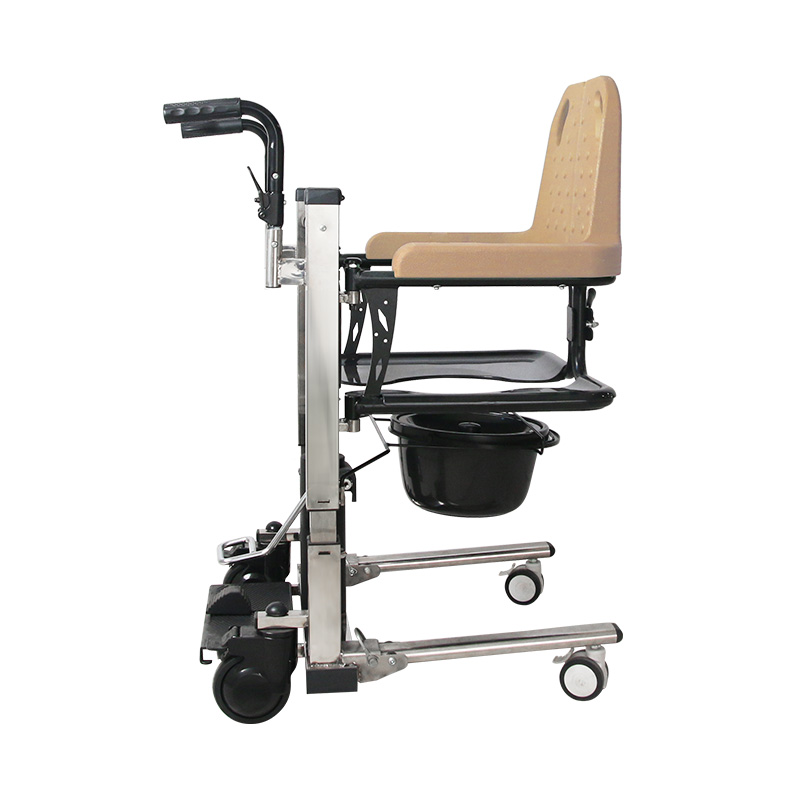

HES-L613 Stainless Steel Hydraulic Lift Patient Lifter

This hydraulic patient lifter, introduced by Heinsy, is an assisted transfer device specifically designed for individuals with mobility challenges. It aims to provide safe and convenient transfer solutions for home care, medical institutions, and elderly care facilities.

Constructed with high-strength carbon steel tubes as the main frame, the product offers durability and strong load-bearing capacity, ensuring stable support for users. The design incorporates multiple user-friendly features: a seat plate that opens 180° to accommodate different body types, and 9-height adjustable settings ranging from 42 cm to 60 cm to meet diverse transfer needs. The front and rear wheels are equipped with silent medical swivel casters, allowing 360° rotation for flexible movement with minimal noise, making it suitable for various indoor environments.

Additionally, the product is multifunctional: the waterproof seat plate and overall waterproof design enable it to function as a shower chair, while the built-in simple toilet pan allows it to serve as a portable toilet, meeting daily care needs such as toileting and bathing. The chair back features dual safety locks (seat belt and buckle types) to further enhance safety during use, providing reliable support for transferring individuals with mobility limitations.

Features:
1. The entire lifter adopts high-strength stainless steel tubes (seat frame and footrest frame use high-strength steel tubes), with an aesthetically pleasing design, high strength, and good stability. The surface is treated with bright polishing/spray coating, providing anti-aging/oxidation properties.
2. Foldable one-piece footrest, sturdy and space-saving, easy to operate.
3. Foldable small wheel frame and quick-release seat frame for easy storage and space efficiency.
4. Seat Cushion: Made of high-strength PVC stitched fabric, soft, waterproof, anti-slip, and visually appealing.
5. Backrest Cushion: Blow-molded plastic high backrest with integrated armrests, aesthetically pleasing, smooth, waterproof, and comfortable.
6. Front 5-inch directional wheels with brakes for easy braking; rear 3-inch swivel wheels with brakes.
7.  Foldable push handle that can be tilted backward to facilitate dining without transferring; compatible with a quick-release meal tray.
8. Hydraulic pump-controlled lifting eliminates the need for bending; seat height adjustable up to 100 mm to suit different users. The pedal is equipped with a limit block to assist in controlling the hydraulic pump and prevent misuse.

Recommended Users:

Application Scenarios
Home Care: Ideal for families caring for individuals with long-term mobility challenges. For heavier users (e.g., over 100 kg) or caregivers with limited physical strength, the hydraulic lifter easily facilitates transfers between beds, wheelchairs, sofas, and bathrooms. Its slow and stable lifting speed reduces discomfort during transfers, making home care safer and less labor-intensive.
Medical Institutions: In ICU, orthopedics, geriatrics, and other departments, the hydraulic lifter is an essential aid. For postoperative, fracture recovery, or severely paralyzed patients who cannot move independently and are heavier, medical staff can precisely control transfer height and angle, smoothly moving patients from beds to examination or treatment tables, reducing secondary injuries.
Elderly Care Facilities and Nursing Homes: For large numbers of elderly or disabled individuals, the hydraulic lifter efficiently meets collective care needs. Whether assisting with daily transfers or helping with bathing and toileting, its stable performance and strong load capacity significantly improve care efficiency and reduce caregiver workload.

Target Users
Heavier individuals with mobility challenges: Hydraulic drive provides stronger power support, making it safer and more stable for users over 80 kg, such as obese individuals or those with severe disabilities.
Severely disabled or paralyzed patients: These users cannot move independently and require strict posture control during transfers. The precise operation of the hydraulic lifter avoids joint injuries or pressure sores caused by improper transfers.
Postoperative rehabilitation patients: Those recovering from hip replacement or spinal surgery need to avoid sudden movements. The smooth lifting and slow movement of the hydraulic lifter minimize strain on surgical sites, aiding recovery.

Product Structure:

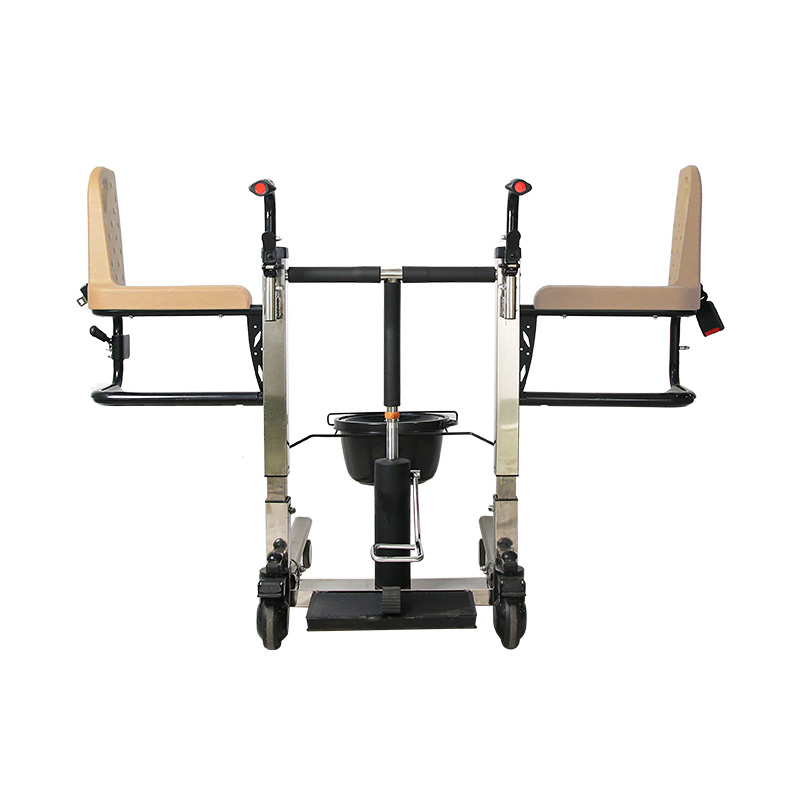

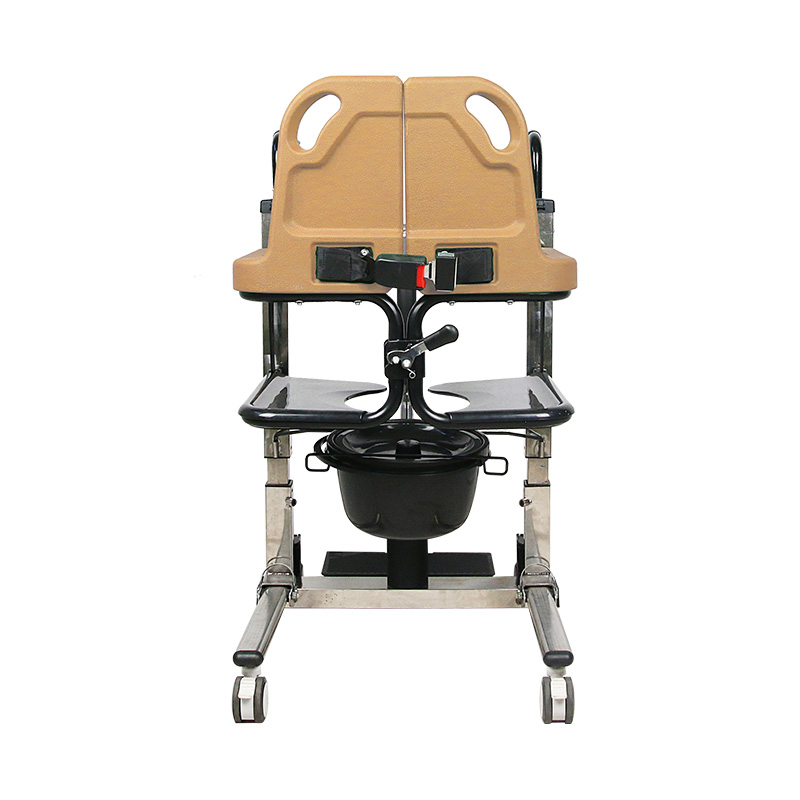

The hydraulic patient lifter primarily consists of a seat, wheels, and frame. The seat is mounted on the frame and includes a first seat plate and a second seat plate, both rotationally connected to the frame. The first and second seat plates are equipped with collection slots that merge to form a collection hole for excretion when closed, facilitating toileting. Several wheels are installed on the frame for flexible movement.

Usage and Maintenance:
Usage Instructions
Pre-Use Inspection: Carefully inspect all components of the patient lifter, such as ensuring the seat belt is intact, the frame is secure, and the wheels rotate normally, to eliminate any potential safety hazards.
Parameter Adjustment: Adjust the height and width of the lifter according to the user's body size to ensure stable support.
Positioning Operation: Move the lifter to a suitable location with ample space and no obstacles. Engage the brakes to secure the lifter. Open the sliding seat plate, assist the user onto the seat, close the plate, and ensure the user is seated securely. Release the brakes and push the lifter to transfer the user to the target location.
Completion: Upon reaching the destination, ensure the user is seated or lying stably, then unfasten the seat belt and move the lifter away.

Maintenance Guidelines:

Regular Inspection: Periodically check screws, brackets, and other components to ensure they are secure and reliable. Repair or replace any damaged parts promptly.
Cleaning: Clean the lifter after each use, especially the seat plate and toilet pan areas. If used as a shower chair, dry it promptly to prevent rust caused by moisture. Avoid direct sunlight or damp environments for the entire device.
Lubrication: Regularly lubricate moving parts, such as wheel axles and seat plate connections, with motor oil or lubricant to ensure smooth operation.
Storage: Store the lifter in a dry, well-ventilated area away from children to extend its service life.
Precautions: The lifter is for single-user only. Overloading is strictly prohibited to maintain stability and prevent accidents. Avoid operating on wet or uneven surfaces to prevent slipping or tipping. Caregivers should maintain proper posture to avoid self-injury. Users with specific health conditions should use the lifter under the guidance of a doctor or therapist.

Precautions:

Load Limit: Strictly adhere to the rated load capacity. Overloading may cause structural damage or tipping, leading to safety incidents.
Operating Environment: Avoid wet, muddy, or uneven surfaces (e.g., uneven tiles, curled carpet edges) to prevent wheel slippage or tipping. Ensure the operating space is free of obstacles to avoid collisions.
User Protection: Users must fasten the dual safety locks (seat belt and buckle) on the chair back before moving. Caregivers must supervise throughout the transfer to prevent users from leaning out of the seat plate.
Operation Standards: Caregivers should push the lifter smoothly, avoiding sudden stops, turns, or shaking to prevent users from falling due to inertia. During height adjustment, ensure the user is stable and clear of obstructions to avoid pinching.

Maintenance Precautions
Cleaning Restrictions: Avoid using highly corrosive cleaners (e.g., strong acids or alkalis) to prevent damage to the protective coating of the high-strength carbon steel tubes and waterproof components. Use neutral soapy water, then wipe dry with a cloth.
Lubrication Requirements: Use only specified motor oil or lubricant for moving parts like wheel axles and seat plate connections. Other types of grease are prohibited to avoid affecting normal operation.
Storage Conditions: When not in use, store the device in a dry, well-ventilated area away from direct sunlight. Do not leave it in damp corners or outdoors for extended periods to prevent rusting of metal parts and aging of plastic components.

Special Considerations
Special Populations: Users with severe osteoporosis, recent fractures, spinal injuries, or other specific health conditions must use the device under the guidance of a doctor or professional therapist, with adjustments made based on their condition.
Fault Handling: If abnormalities such as loose parts, unusual noises, lifting failure, or wheel jamming occur, stop use immediately and contact professional technicians for repairs. Do not attempt disassembly or forced operation.
Child Safety: Keep the device away from children's play areas during storage and use to prevent climbing or playing, which could lead to pinching, falls, or other accidents.
