1. The main body of the vehicle is made of high-strength aluminium alloy tubes, which has beautiful and atmospheric styling, high strength and good stability. The surface is sprayed, with anti-aging/oxidation qualities;
2. Eight-way opening and closing support legs, electric control, adjustable base width, ultra-low front wheels, applicable to most scenarios;
3. High-strength seated sling pockets, auxiliary use to transfer the patient, reduce the pressure of caregivers;
4. Hanging pockets: strong load-bearing capacity, soft cloth, breathable, four-position adjustment of the front and rear height;
5. Rotating hook, good applicability, convenient to adjust the descending position;
6. Rear universal 3-inch wheel with brake, the operator easily brake, front universal 1.5-inch wheel, steering flexibility;
7. Electric control of lifting and lowering, free height control within the travelling range;

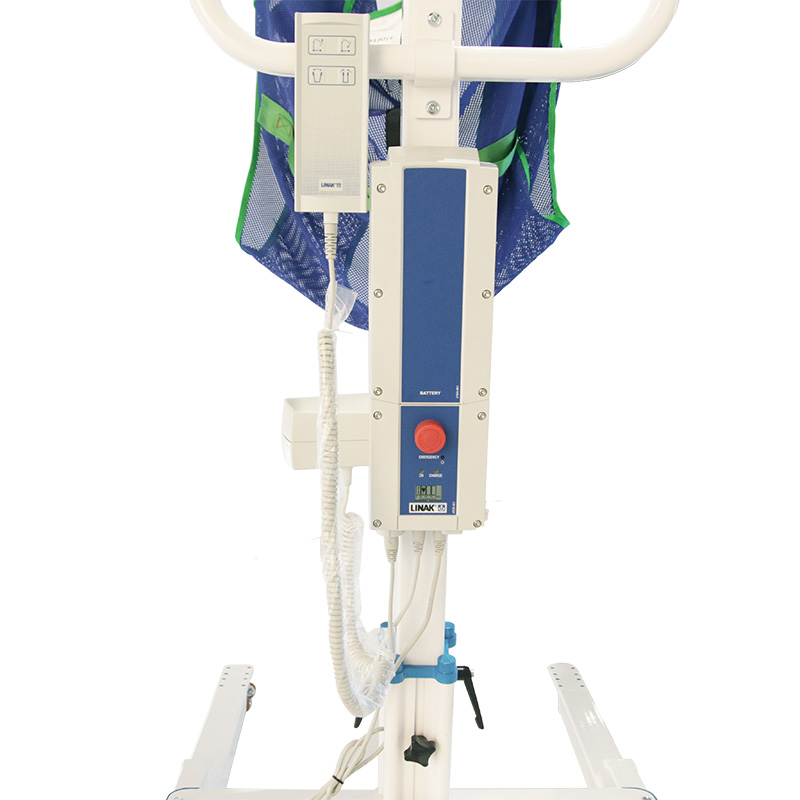

8. Electric control system with emergency stop switch, with power display;
9. Equipped with special hand controller with wire, boom electric actuator with emergency manual descending device.
Description
Contact us
The main body of the vehicle is made of high-strength aluminium alloy tubes, which has beautiful and atmospheric styling, high strength and good stability. The surface is sprayed, with anti-aging/oxidation qualities;
| Name | Parameters |
| Overall length (L) | 117.5cm |
| Overall width (W) | 64cm |
| Overall height (H) | 135cm-196.5cm |
| Outside width of leg (G) | 64cm-122cm |
| Inside width of leg (F) | 59cm-112cm |
| Opening angle of leg | 40°, (20° on one side) |
| Height of leg use (E) | 6.2cm |
| Maximum depth of leg use (D) | 59.5cm |
| Height of boom adjustment (Hook position) (C) | Single boom: 41~174cm Double boom: 39.5~171cm |
| Input power | AC100V-240V-50-60HZ |
| Batteries | Lead-acid battery DC24V 2.9AH |
| Outrigger electric actuator | 3000N 24V |
| Boom electric actuator | 10000N 24V |
| Diameter of front wheels (A) | 1.5‘ without brake universal wheel |
| Rear diameter of rear wheels (B) | 3’ with brake universal wheel |
| Noise | <65dB(A) |
| Packing dimensions | 126.5*71.5*41.5cm |
| Weight | Single boom: net weight 42.5kg Gross weight 49.5kg Double boom: net weight 43.5kg Gross weight 50.5kg Separate electronic control system: 10kg |
| Load capacity | 205kg |
